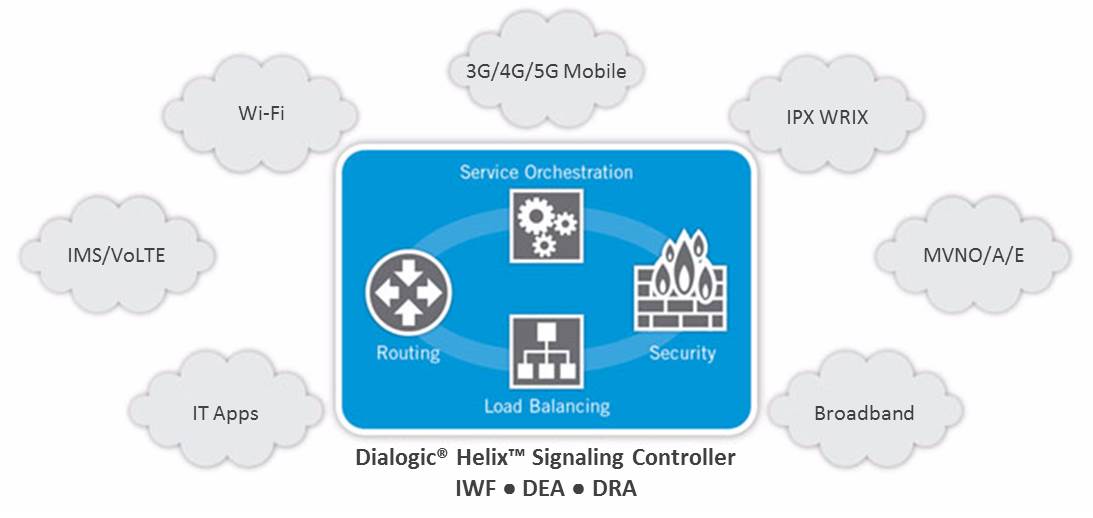

The BorderNet Diameter Services Helix is a platform built for innovation. It is a next generation Diameter Signaling Controller (DSC) with an advanced service orchestration framework that provides Interworking Function (IWF), Diameter Edge Agent (DEA), and Diameter Routing Agent (DRA) functionality in a single unified solution. The BorderNet Helix empowers 3G, 4G, fixed and Wi-Fi operators with support for:



  • Seamless service creation and multiprotocol interworking
  • Secure and scalable any-to-any service connectivity
  • Increased velocity in bringing networks and services to market



The BorderNet™ Diameter Services Helix, the next generation of Diameter Signaling Controllers, combines DEA, IWF and DRA functionality to provide intuitive service enhancement and orchestration capabilities for mobile, Wi-Fi, IPX and fixed operators.



Take Interworking of Diameter, RADIUS and SS7 to the Next Level

The advanced service orchestration bus and template driven architecture enable rapid service creation and service enhancement while providing unmatched ease of use and flexibility compared to other interworking (IWF) approaches on the market today.  The Helix makes it possible to perform multi-protocol interworking on Diameter, RADIUS, SS7, and HTTP along with other IT protocols through an intuitive Web 2.0 based GUI to help eliminate the need for stand-alone gateways.

Secure 3G and 4G Mobile Core Assets

The Helix supports both DRA and DEA functionality along with unrestricted access to the payload of any inbound message for exceptional routing control. The Helix supports GSMA IR.88 DEA specifications making it well suited for mobile and IPX networks with features like:
  •  Dynamic Routing
  • Overload Protection
  •  Diameter Mediation
  •  Load Balancing
  •  Topology Hiding
  •  Diameter, RADIUS and MAP Interworking
  •  PCRF and HSS Binding
  •  Subscriber Lookup Function
  •  GUI-based Flow Management

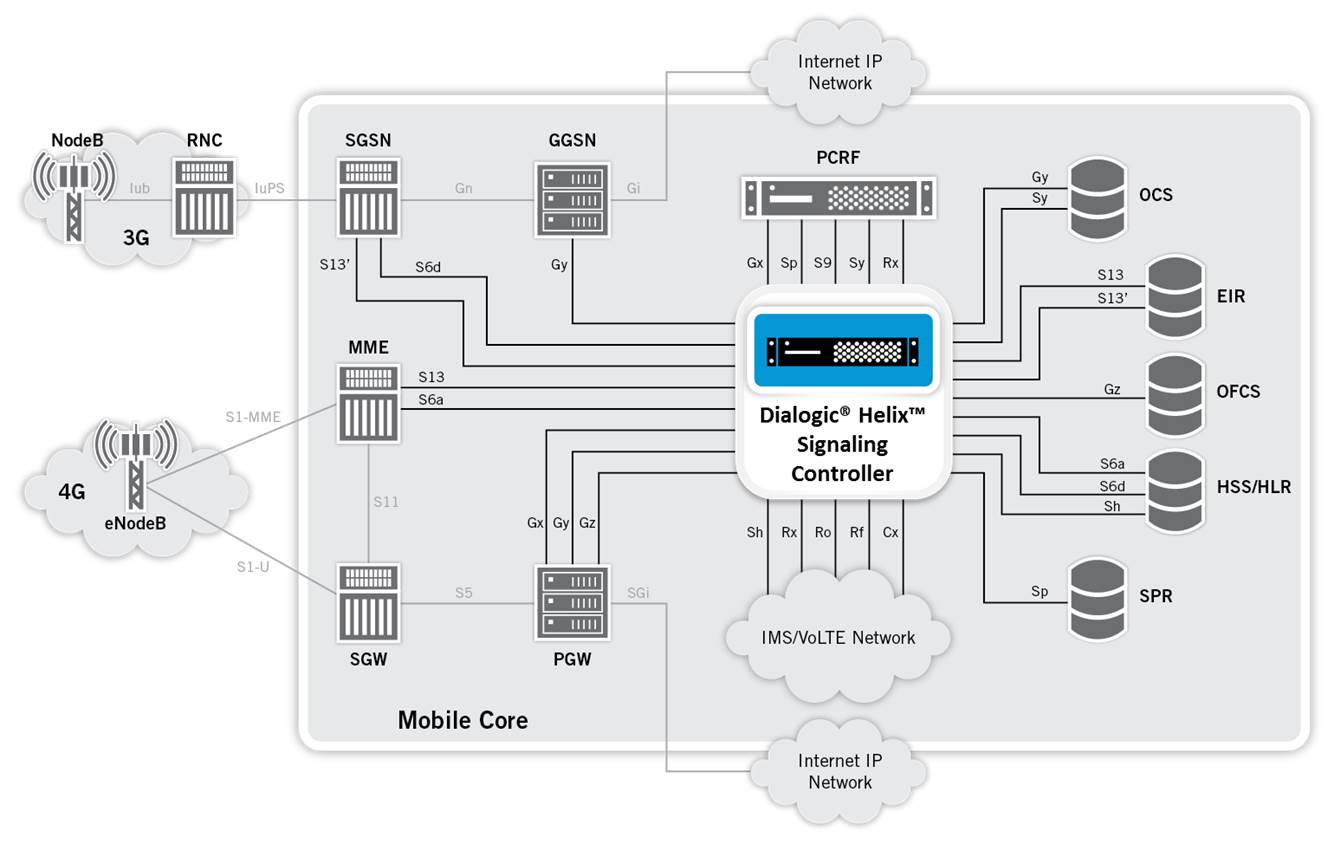

Centralize Management and Routing of Diameter Messages

The Helix can help you address the explosion of Diameter traffic and reduce the complexity of managing connectivity between diverse network nodes with an RFC 6733 compliant platform. The template driven architecture enables service providers to easily add additional Diameter interfaces and proprietary extensions without the need for vendor intervention giving you more control over how they manage your networks.  Integrated IWF functionality provides additional flexibility to extend interoperability of services across legacy and Wi-Fi networks.





The BorderNet™ Diameter Services Helix provides a rich set of ready-made templates for the most common Diameter applications and allows for easy addition new interfaces, protocol variants, and proprietary extensions.



BorderNet Diameter Services Helix Applications

Check out these use cases on how the BorderNet Diameter Services Helix can take you from whiteboard to revenue at 4G speeds.

Energize Roaming Strategies

MNO, Wi-Fi and IPX operators can now rapidly deploy secure and seamless roaming services across transport and protocol differentiated networks such as MAP/SS7, RADIUS and Diameter. Find out more.



Take Advantage of Wi-Fi Offload Opportunities

The Helix tackles your toughest interoperability challenges head on with its unique design approach to routing, security and interworking of RADIUS, Diameter, and MAP/SS7 messages for a seamless roaming experience across Wi-Fi and mobile networks.

MVNOs Take Control

Discover how the Helix puts the control into the hands of mobile virtual network operators, aggregators and enablers of their network, services and customers to help accelerate time-to-market and differentiate their offerings from those of their underlying mobile network operators (MNOs).

Tackling Vendor Interoperability Challenges with Less Downtime



Find out how the Helix helps service providers accelerate time-to-revenue with the ability to easily fix incompatibility issues between vendor platforms without the need for costly and time consuming development work.







Features

Benefits

Multi-protocol interworking and service orchestration through integrated Web 2.0 GUI

Provides the ability to apply advanced logic to protocol message flows.  Diameter and non-Diameter services can be intelligently routed based on protocol, message parameter or message context, resulting in rapid development of new services for fast time to market.

Integrated Diameter Routing, Edge agent and Interworking function on a single unified platform

Provides centralized management, security, load balancing and multi-protocol, multi-domain interworking and orchestration for faster network and service deployment.

Multi-protocol support with extensibility to add additional protocols and protocol variants

Removes the need for expensive and time consuming development to support new protocol variants or complex interworking use cases.

Real-time dashboard and extensive reporting and analytics Real-time visibility into system performance and reporting on each protocol along with detailed recording of protocol events, configuration auditing, logging and tracing provides valuable intelligence to improve operational efficiency.



Preliminary Technical Specifications

Protocol Support

  • Signaling: Diameter, RADIUS, HTTP, SOAP, REST, XML, LDAP, SQL, SS7, SMPP, SCTP, TCP/IP, UDP
  • Transport: TCP, UDP, SCTP, SIGTRAN, TLS/TCP and DTLS/SCTP
  • Network: IPv4, IPv6
Diameter Reference Interfaces
  • Diameter applications (template driven and pre-configured) including Cx, Dx, Gx, Gy, S13, S6a, S6d, Sh

Diameter Base Conformance

  • RFC 6733
  • RFC 3588
Diameter Agent Support
 CLI, GUI, SNMP, XML, CSV, Dashboard
IETF

 Relay, Proxy, Redirect, Translation

3GPP
  • Diameter Routing Agent (DRA)
  • Interworking Function (IWF)
GSMA
  •  Diameter Edge Agent (DEA)
Management
Interworking, any-to-any protocol conversion, mediation, aggregation, intelligent routing, enrichment, shaping, configurable service logic
On-board Functions

Interfaces



IP Signaling
  • 4 Gigabit Ethernet (10/100/1000 Base-T copper or MM optical)
  • Expandable up to 6 interfaces
TDM Signaling
  • Up to two (2) boards per unit; either one or two Dialogic® DSI SS7LDH4 Network Interface Boards or one or two Dialogic® DSI SS7MDL4 Network Interface Boards can be used
   SS7LD  SS7MD
T1/E1 ports per board
 4 T1 or 4 E1
 4 individually selectable T1/E1
SS7 Low Speed Links per board
 Up to 16
 Up to 124
SS7 High Speed Links (Q.973 Annex A) per board
 NA  Up to 4
ATM High Speed Links per board
 NA  Up to 4
Maximum SS7 links per unit
 248
Maximum SS7 link sets per unit
 64
Maximum M2PA links per unit
 256
Maximum number of SS7 routes
 4096
Number of separate network contexts
 4
Maximum number of SIGTRAN associations
 256
MTBF (using Telcordia method at 40°C)
 95,000 to 133,000 hours, depending on type and number of boards in chassis (assumes  dual PSU configuration)
Management
  • 1 redundant Gigabit Ethernet (10/100/1000 Base-T)

Power


Power Supplies
  • Dual hot swappable AC or DC power supplies
  • Each power supply 650W maximum
AC Power Option
  • Input voltage 100 - 240 VAC
  • Frequency: 50Hz - 60Hz
  • Input power (fully equipped): 150 W

Environment



Operating temperature range:
  •  50°F to 104°F (10°C to 40°C)
Storage temperature range:
  •  -40°F to 158°F (-40°C to 75°C)

Physical


Form factor
 1U Rack Mount Server
Dimensions
  • Width 16.93 in (430.0 mm) x Depth 20.75 in (527.1 mm) x Height 1.74 in (44.2 mm)
Weight
  • 26.8 lbs (12.2 kg)

Safety and EMC



International
  • CB Certificate to IEC UL 60950 -1 2nd Ed. 2007
  • EN 300 386, EN55022, EN55024, CISPR 22
United States
  • UL 60950 -1 2nd Ed. 2007
  • FCC Part 15 Class A
Canada
  • CAN/CSA-C22 No UL 60950 -1 2nd Ed. 2007
  • ICES-003
Telecommunications
  • International: TBR12, TBR13
  • United States: TIA-968-A
  • Canada: CS-03
Approvals, Compliance, and Warranty
Hazardous substances



Country-specific approvals
  • Contact your local Dialogic sales representative
Warranty
  • Contact your local Dialogic sales representative

Data Sheet

  • Dialogic's BorderNet Diameter Services Helix is a high performance, highly scalable and versatile next generation Diameter Signaling Controller, enabling seamless management and delivery of services across 3G, 4G, Wi-Fi, fixed and IPX networks.

Brochure

  • The BorderNet™ Diameter Services Helix combines unparalleled multiprotocol Interworking Functionality (IWF) and high-availability Diameter Edge Agent (DEA) and Routing Agent (DRA) features in a single, unified solution. Find out more.

White Paper

  • Both Wi-Fi operators and mobile operators want to provide their customers expanded coverage through the ability to roam between networks.  Interworking between networks is a core requirement for a seamless user experience and cost effective interoperability.  Download this white paper to find out more about how service providers can accelerate their ability to leverage Wi-Fi offload through interworking strategies to support seamless roaming.
