LAPD Architecture Overview

Overview

The figure below is an overview of the CSP architecture. The local host and matrix host are depicted as separate entities, but they can also exist as a single entity.

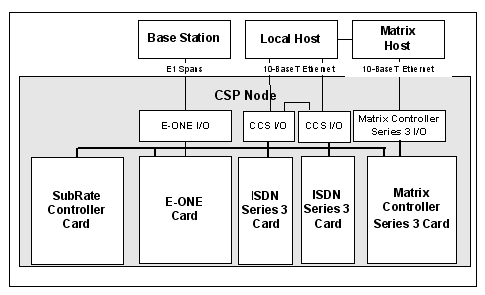

Figure 8-8 An overview of the CSP, with hosts connecting the ISDN and CSP Matrix Series 3 Cards
