LAPD Functional Message Breakdown
Overview
The figure below shows the messages and tasks for enabling Layer 2, the TEI management messages, and the interface to the host. All
Layer 2 messages to and from the local host are embedded in these two messages:
• PPL Event Indication
• PPL Event Request.

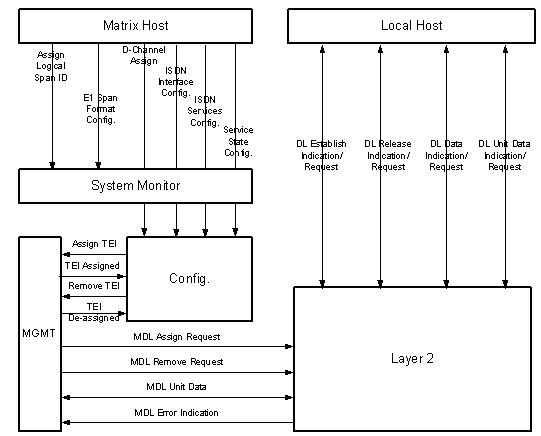

Figure 8-9 Input/Output Messaging
