Important ISUP PPL Information

Overview

This section highlights some of the more important ISUP PPL components information related to SS7 customization. Complete Configuration Byte values, and PPL timers and events are documented in the SS7 PPL Information of this guide.

Configuration Bytes

This section identifies important PPL Configuration Bytes for each component, and their default values.

ITU L3P CIC

The L3P CIC PPL Configuration Bytes configure the following:

• Bytes 1-3 - CGB, CGU, GRS

Point to the byte locations of the Circuit Group Block (CGB), Circuit Group Unblock (CGU), and Circuit Group Reset (GRS) parameters, which are used when generating group messages. Other functions in the system access these parameters. You can move the location of the parameter values within the L3P CIC Configuration Bytes; however, you must update Bytes 1-3 to point to their location.

• Bytes 4-7 - SS7 Parameter Information For Outgoing Calls

Required when the host sends BCD-encoded digits.

• Byte 8 - Request For Service With Data message format

For incoming calls. Address information can be passed as SS7 parameter data or as BCD-encoded digits.

• Byte 9

Determines if an incoming SS7 call requires a response with the ACM/ANM or CON messages.

• Byte 10 - Host Out-of-service and In-service Operation Flag

This flag determines if a reset or block/unblock sequence is used for host initiated out-of-service and in-service transitions.

• Bytes 15-145 - Values For SS7 Parameters In Outgoing Messages

These values are used unless the host overrides them in an SS7 Parameters ICB. Values are included for the following messages:

ITU ISUP CPC

The ISUP CPC Configuration Bytes contain values for the Dual-seizure Control Flag and CPC-initiated REL parameters.

• Byte 1 - Dual-seizure Control Flag

Upon detection of a dual-seizure condition (collision between incoming and outgoing IAMs); this flag determines which side is dropped.

• Bytes 10–16, 25–31, and 40–46 - parameter values for CPC-initiated Releases, depending on the failure reason

Under certain circumstances, ISUP CPC must initiate a release to the network. For example, expiration of the T8 timer results in a forward REL with a Cause Value of "Temporary Failure" ITU ISUP SPRC.

ITU ISUP SPRC

• Byte 1 - Range & Status Parameter ID

This ID is required for logic in ISUP, which identifies group messages and routes them to the correct group state machine based on the value of the range field.

• Byte 2 - Byte Offset of the Range Field

The range field of the Range and Status parameter is assumed to be one octet. However, its placement in the Range and Status parameter is not assumed. This Configuration Byte entry contains the byte offset into the parameter for the range field (this is 0 for ITU). This is done, along with the Range and Status parameter name, in order to allow ISUP to be able to handle ISUP message and parameter variants.

• Byte 3 - ITU Service Indicator

This field is placed in to every outgoing ISUP message as a field in the MSU Service Information Octet.

• Byte 4 - ITU Subservice Field

This field is placed into every outgoing ISUP message as a field in the MSU Service Information Octet.

• Byte 5 - MTP Pause Logic Flag

After an MTP Pause indication is received, the SPRC can either process the pause immediately, or it can delay the pause processing and queue any outgoing messages to MTP. If an MTP Resume indication is received before timer expiration, the queued messages are sent to MTP. If the timer expires, the queued messages are discarded and the pause is processed. (For a description of ISUP MTP Pause Logic, see ISUP MTP Pause Logic Options

ANSI L3P CIC

• Bytes 1 and 3 - CGB, CGU, and GRS

Point to the byte locations of the Circuit Group Block (CGB), Circuit Group Unblock (CGU), and Circuit Group Reset (GRS) parameters, which are used when generating group messages. These parameters are accessed by other functions in the system. The location of the parameter values can be moved within the L3P CIC Configuration Bytes, however, Bytes 1 and 3 must be updated to point to their location.

• Bytes 4-7 - SS7 parameter information

Required for outgoing calls when the host sends BCD-encoded digits in an Outseize Control message.

• Byte 8 - Request For Service With Data message format

For incoming calls. Address information can be passed as SS7 parameter data or as BCD-encoded digits.

• Byte 10 - Host Out-of-service And In-service Operation Flag

This flag determines if a reset or block/unblock sequence is used for host initiated out-of-service and in-service transitions.

• Bytes 15-137 - SS7 Parameter Values For Outgoing Messages

These values are used unless overridden by the host in an SS7 parameters ICB.

ANSI ISUP CPC

The ISUP CPC Configuration Bytes control the Dual-Seizure Control Flag and CPC-initiated REL parameters.

• Byte 1 - Dual-Seizure Control Flag

Upon detection of a dual-seizure condition (collision between incoming and outgoing IAMs); this flag determines which side is dropped.

• Bytes 10–16, 25–31, 40–46, and 51–61 - parameter values for CPC-initiated Releases, depending on the failure reason.

Under certain circumstances, ISUP CPC must initiate a release to the network. For example, expiration of the T8 timer results in a forward REL with a Cause Value of "Temporary Failure."

ANSI ISUP SPRC

ISUP SPRC PPL Configuration Bytes control configuration flags, messages, and other important values, as follows:

• Byte 1 - Range & Status Parameter ID

This ID is required for logic in ISUP which identifies group messages and routes them to the correct group state machine based on the value of the range field.

• Byte 2 - Byte Offset of the Range Field.

The range field of the Range and Status parameter is assumed to be one octet. However, its placement in the Range and Status parameter is not assumed. This Configuration Byte entry contains the byte offset into the parameter for the range field (this is 0 for ANSI). This is done, along with the Range and Status parameter name, in order to allow ISUP to be able to handle ISUP message and parameter variants.

• Byte 3 - ANSI Service Indicator

This field is placed in to every outgoing ISUP message as a field in the MSU Service Information Octet.

• Byte 4 - ANSI Subservice Field

This field is placed into every outgoing ISUP message as a field in the MSU Service Information Octet.

• Byte 5 - MTP Pause Logic Flag

Upon reception of an MTP Pause indication, the SPRC can either process the pause immediately, or it can delay the pause processing and queue any outgoing messages to MTP. If an MTP Resume indication is received before timer expiration, the queued messages are sent to MTP. If the timer expires, the queued messages are discardedISUP MTP Pause Logic Options.

• Bytes 6-26 - SPRC-initiated Confusion

CFN messages to the network in response to an unrecognized or corrupt message.

• Bytes 30-32 - parameter values for an Unequipped CIC

UCIC message to the network in response to a network message that pertains to an unknown or out-of-service CIC.

L3P CIC PPL Configuration Bytes

The mapping of the PPL Configuration Bytes for the L3P CIC component allows you to move Configuration Bytes for a message without modifying the PPL protocol.

Existing atomic functions point to specific Configuration Bytes for the format information on a specific message. If this information was moved to a new Configuration Byte location, the DSD would have to be updated to reflect the new location of the Configuration Bytes.

There are three blocks of 200 Configuration Bytes each, for a total of 600 Configuration Bytes. Bytes 501–600 are used as the Configuration Byte Offset Table, which contains an index pointing to the location of the Configuration Bytes with the format information for each message.

Atomic Function 122 in the L3P CIC state machine points to the index in the Configuration Byte Offset Table, which indicates the location of the Configuration Bytes for a specific message. If you move the location of the Configuration Bytes for a message, you only need to update the Configuration Byte Offset Table, using the PPL Configure message, to reflect the new location.

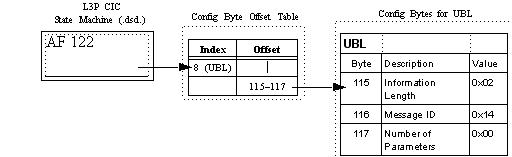

The next figure shows the usage of the Configuration Byte Offset Table by the L3P CIC state machine to access Configuration Bytes for a specific message. See SS7 PPL Information for ITU and ANSI Configuration Byte offset values.

Figure 4-10 Use of Configuration Byte Offset Table

Protocol Timers

Each PPL component has multi-purpose timers, which you can activate at any time. Each component using timers has a table that contains information on specific timers (name, value). When a protocol requires a timer, an atomic function is initiated to activate one of the PPL timers and to point to an index in the components timer table, which contains the value for the required timer. See SS7 PPL Information in this manual for default timer values.

Other Customization

The table below lists other common SS7 customization which is implemented through modification of PPL Configuration Bytes with the PPL Configure message.
