Configuring Virtual CIC Format

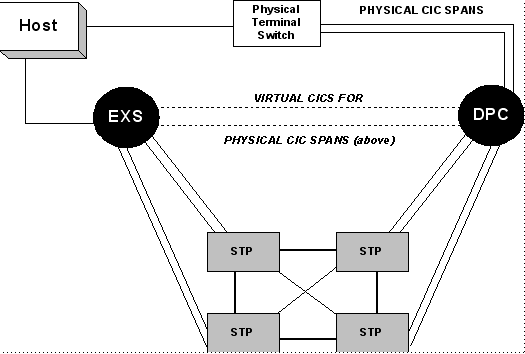

You should be aware that physical CICs can be configured along with Virtual CICs on the same stack.

For TUP Virtual CIC, all API messages use the DPC/Stack/CIC form of addressing instead of time slot addressing in the CSP. SS7 CIC Configure and Service State Configure messages are used. When configuration is finished, the TUP Virtual CIC can generate outbound calls and receive inbound calls, using the PPL Event Indication and the PPL Event Request messages to perform all call processing functions.

As with the Cantata China TUP, the TUP Virtual CIC also supports User-Defined messages.

This procedure describes how to configure TUP Virtual CIC in addition to the general CSP configuration.

2 Assign Virtual Voice Circuits. (Virtual CICs). Use the SS7 CIC Configure message.

3 Bring spans and signaling links in-service. Use the Service State Configure message.

4 Bring Virtual CICs in-service. Use the Service State Configure message with new AIB Address Type.

5 Synchronize actual physical CIC states with Virtual CIC states. Use the L3P TUP PPL (0x11) Event Request 64 for Virtual Span INS status.

6 Assign and configure spans. Use the Assign Logical Span ID and T1/E1 Span Configure messages.

9 Configure Signaling Link Sets. Use the SS7 Signaling Link Set Configure message.

11 Assign SS7 Virtual Voice Circuits (Virtual CICs). See More on Configuring SS7 Virtual CICs (5-34).

12 Bring spans and signaling links into service. When all the configuration is complete, use the Service State Configure message to establish a connection with the network and to begin call processing. When the destination becomes accessible, the CSP sends the host a PPL Event Indication message. The associated signaling link must be in service for all CICs.

Error Condition: If a host link failure occurs, all virtual CICs that have been configured in the system will be placed Out of Service. The host must then send a Service State Configure message to bring all of those virtual CICs into service.

13 Bring Virtual CICs into service. Send PPL Event Request 64 and Service State Configure to bring Virtual CICs into service. The new AIB Address Type for Virtual CICs is included with both the Service State Configure message and the PPL Event Request 64. When the Virtual CICs come in-service, a PPL Event Indication with Status INS message will be sent for each CIC.

All configuration of Virtual CICs is performed using the SS7 CIC Configure message. Call control, circuit supervision, and maintenance can be managed using the Telephone User Part (TUP) interface.

Voice circuits controlled by SS7 Signaling Links are identified by a CIC. A specific voice circuit is identified in the network by its unique DPC-CIC combination.

The SS7 CIC Configure message assigns a DPC/CIC code pair and a User Part (TUP) to virtual voice circuits.

The following example shows the SS7 CIC Configure message used to configure a Virtual CIC Group. Each CIC Group can have up to 31 circuits for E1 and 24 circuits for T1.

BYTE	Field	Value
0	Frame	0xFE
1-2	Length (MSB, LSB)	0x00, 0x16 (22)
3-4	Message Type (MSB, LSB)	0x00, 0x6A
5	Reserved	0x00
6	Sequence Number	0xSN
7	Logical Node ID	0xFF
8	AIB Address Method	0x00
9	Number of Address Elements	0x01
10	Type	0x14
11	Data length	0x07
12	Data [0] Stack ID	0x00 (Stack 0)
13-14	Data [1-2] Base CIC Number	0x01, 0x00
15-16	Data [3-4] Base CIC Span	0x00, 0x00 Reserved (should use "0")
17	Data [5] Base CIC Channel	0x00 Reserved (should use "0")
18	Data [6] Number of CICs in Group	0x18 (24 CICs)
19-22	DPC	0x00, 01, 02, 03
23	Call Control User Part	0x81 (TUP Virtual CIC)
24	Checksum	CS

Important! Base span number and base channel should not be used and should be "0".

During a matrix controller switchover, PPL Event Indications that come from the SS7 card will be lost. Since all the call processing information is sent to the host using PPL Event Indications, the host will lose some call processing data.

After a matrix controller switchover, the host will get PPL Event Indication 400 (0x190) from PPL Component SPRC, containing stack ID, DPC, Base CIC and status for all virtual CICs.

The TUP Virtual CIC supports redundancy for Virtual CICs in the same way that it is currently supported for physical (actual) CICs. There is no change in the configuration of SS7 redundancy.

The System Configuration message allows you to enable and to configure various system maintenance and monitoring features, including:

The Host Link Failure Detection feature brings all channels or all spans out of service if the CSP detects a failure in the host link. The CSP determines the integrity of the host link by monitoring host ACKs to Poll messages. (You must enable polling to use the Host Link Failure Detection feature.) If the host does not acknowledge two consecutive Poll messages, the CSP begins a timer. If the CSP does not receive a message from the host before expiration of the timer, it resets its Ethernet Receiver.

Upon detection of a host link failure, the CSP responds according to the option set by the host, either to bring all channels out-of-service (0x00) or to bring all channels and spans out-of-service (0x01). The System Configuration message is used to configure both the Response to Host Link Failure (Data[1]) and the Failure Confirmation Timer (Data[2,3]).

During host link failure, all virtual CICs configured in the CSP will be put Out of Service (OOS). The host will have to send a Service State Configure message to bring all those CICs back into service, once the host link failed condition has been corrected.

A System Busy condition occurs when the CSP is overloaded due to a high volume of call processing traffic. A System Busy alarm is sent to the host when the threshold is reached, indicating that no incoming or outgoing calls can be handled until the condition clears. Although subsequent messages from the host are not necessarily lost, Cantata recommends that the host hold back on call processing until the System Busy clears.

During a System Busy condition, the matrix controller will send a message to all the SS7 stacks configured on various SS7 cards to inform about System Busy or System Busy Clear; the appropriate signaling procedure will be initiated to notify the network about the CSP condition. No new incoming calls will be processed during a System Busy condition.

This functionality allows the right SEC message to be sent to the network in response to an incoming call, enabling that call to be cleared.

See Circuit Identification Codes.

Destination Point Code

See Signaling System Number Seven.

The condition of a component at a given instant. The current "context" of a PPL object, such as Idle, Seizing, Answered. In PPL files, a State is represented by a circle.

See Programmable Protocol Language.

A condition that, when met, drives a state machine from one state to another. A condition that drives a Component out of its current state by invoking an associated primitive.

See Common Channel Signaling.

Link that connects to the same node

See Address Information Block.

Range of channels provided by T1 or E1 transmission service. A physical span is a group of channels taking up a single physical wire. A logical span is a group of channels taking up less than a single logical wire, or carried over more than one physical wire.

Digital communications link - voice, data, and video at a 1.544 Mbps rate (24 64 Kbps channels)

A digital communications link - voice, data, and video at a 2.048 Mbps rate; 30B/2D or 31B/1D (ISDN); non-North American version of T1.

Setting up, monitoring, and tearing down calls.

A group of data bits in a specific format, with a flag at each end to indicate the beginning and the end of the frame.

Most Significant Bit

Least Significant Bit

A programmable software component that uses PPL state machines that can be modified with the PPL Tool.

A computer, attached to the Excel platform through an RS-232 or Ethernet link, from which you run the telecommunications application that controls the Excel platform.

The protocol used in most local area PC networks. Typically, most Ethernet networks support data transmission speeds up to 10 Mbps, but 100 Mbps is also possible.
