Send and Receive SIP Signals Using the Same Port
Prior to this feature
Prior to this feature, the CSP received inbound SIP signals on a specific User Datagram Protocol (UDP) port - by default it was port 5060. The receiving port could be changed at run time.
All outbound SIP signals were sent out on a UDP port allocated by the CSP when you configured SIP. This port number could be any valid (and unused) port number above 1023. The port used for outbound SIP signaling from the CSP remained constant until SIP was deconfigured.
With this feature
With this feature, the CSP now sends and receives SIP signals using the same port as configured by the host. By default, the CSP uses port 5060 for all SIP traffic.
Important Points Regarding this Feature
Note the following important points before implementing this feature:
Important! Dialogic recommends that the port not be changed while calls are in progress because doing so could cause the following:
• After a port change, any outstanding SIP responses to the previous port will be ignored.
• If the remote UA has not received a target refresh request from the CSP since the port change, then any request from a remote UA will be ignored subsequent to the port change. These requests include, but are not limited to, BYE,
RE-INVITE, OPTIONS, REFER and NOTIFY.
Other Points
• As soon as the host changes the port number, the CSP expects inbound SIP traffic in the new port. All outbound SIP traffic hereafter contains the new port number in the Contact Header.
• When the port number is changed, the previous port is closed. Any SIP messages sent to the previous port number will not be received by the CSP.
• Via and Contact headers are updated for outbound calls.
Changing Port Number
You can change the port number for inbound/the EXS API or SwitchKit CSA. The following describes each procedure.
Using API
Use the following TLV in the VoIP Protocol Configure (0x00EE) message to change the port number for inbound/outbound SIP signaling traffic.
The range of values is 0x400-0xFFFF (1024-65535) provided the port is not in use. The default is port 0x13C4 (5060).
0x0262 Use SIP Local Port
Byte |
Description |
0, 1 |
Tag 0x0262 |
2, 3 |
Length 0x0002 |
4, 5 |
Value[0] Port Number |
Using CSA
Refer to Configuring SIP in the Converged Services Administrator User’s Guide to configure with SwitchKit CSA.
Call Flows and Traces
Default

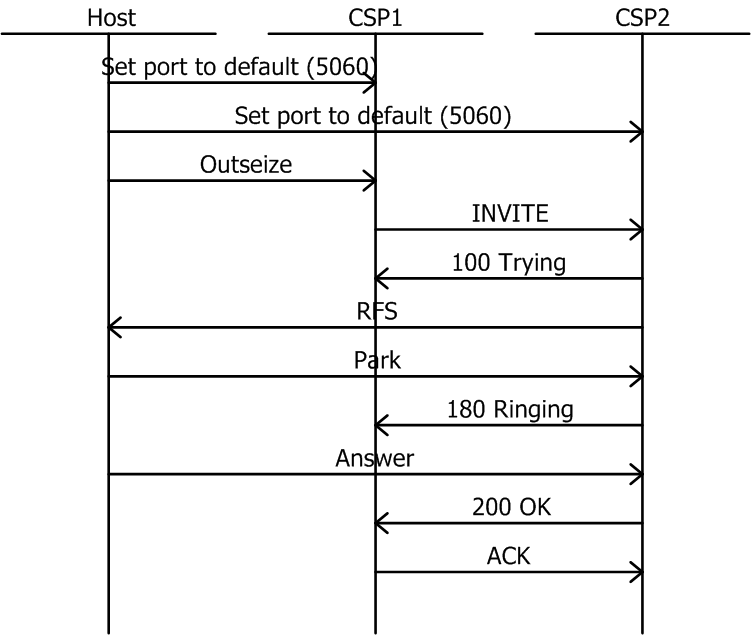

The port is set to the default value in the call flow and corresponding trace below.
CSP1:
H->X
[00 15 00 ee 00 00 01 00 00 00 00 02 01 c8 00 01 04 02
62 00 02 13 c4]
X->H
[00 07 00 ee 00 00 01 00 10]
H->X
[00 83 00 2c 00 01 01 00 01 0d 03 00 64 1f 02 03 00 1e
00 0f 00 02 01 16 00 02 00 00 01 1a 00 03 00 00 00 03
00 33 00 5d 00 09 27 7e 00 03 08 00 00 29 19 00 06 32
32 32 32 32 00 29 1b 00 0c 31 30 2e 31 30 2e 31 2e 32
35 32 00 29 1c 00 04 00 00 13 c4 29 23 00 06 38 38 38
38 38 00 29 25 00 0c 31 30 2e 31 30 2e 31 2e 32 35 34
00 29 26 00 04 00 00 13 c4 27 92 00 04 0a 0a 01 b6 27
93 00 04 00 00 10 7c]
X->H
[00 07 00 2c 00 01 01 00 10]
X->H
[00 11 00 43 00 15 01 00 01 0d 03 00 64 1f 00 a7 00 24 00]
H->X
[00 05 00 43 00 15 01]
X->H
[00 44 00 43 00 16 01 00 01 0d 03 00 64 1f 00 a7 00 20 01 03
00 33 00 2e 00 01 29 ff 00 28 2a 0e 00 04 0a 0a 01 ac
2a 01 00 1c 2a 03 00 01 00 2a 07 00 04 00 00 27 9c 2a
13 00 01 00 2a 02 00 06 2a 08 00 02 00 02]
H->X
[00 05 00 43 00 16 01]
2
Printing all SIP messages
1 -SENT To 10.10.1.252:5060 at 3857
INVITE sip:22222@10.10.1.252:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.254
To: 22222<sip:22222@10.10.1.252:5060>
From: 88888<sip:88888@10.10.1.254:5060>;tag=41275790f11
Call-ID: EXCEL-CSP1.101f.3857.140@10.10.1.254
Contact: 88888<sip:88888@10.10.1.254:5060>
User-Agent: Excel_CSP/83.1.13
Supported: timer
Session-Expires: 1800
Min-SE: 300
CSeq: 1 INVITE
Content-Type: application/sdp
Content-Length: 100
v=0
o=sip 0 0 IN IP4 10.10.1.254
s=SIP_Call
c=IN IP4 10.10.1.182
t=0 0
m=audio 4220 RTP/AVP 0
2 -RECEIVED From 10.10.1.252:5060 at 3857
SIP/2.0 100 Trying
To: 22222<sip:22222@10.10.1.252:5060>;tag=5790bba
From: 88888<sip:88888@10.10.1.254:5060>;tag=41275790f11
Call-ID: EXCEL-CSP1.101f.3857.140@10.10.1.254
CSeq: 1 INVITE
Contact: 22222<sip:22222@10.10.1.252:5060>
Via: SIP/2.0/UDP 10.10.1.254
User-Agent: Excel_CSP/83.1.13
Content-Length: 0
3 -RECEIVED From 10.10.1.252:5060 at 3857
SIP/2.0 180 Ringing
To: 22222<sip:22222@10.10.1.252:5060>;tag=5790bba
From: 88888<sip:88888@10.10.1.254:5060>;tag=41275790f11
Call-ID: EXCEL-CSP1.101f.3857.140@10.10.1.254
CSeq: 1 INVITE
Contact: 22222<sip:22222@10.10.1.252:5060>
Via: SIP/2.0/UDP 10.10.1.254
User-Agent: Excel_CSP/83.1.13
Content-Length: 0
4 -RECEIVED From 10.10.1.252:5060 at 3857
SIP/2.0 200 OK
To: 22222<sip:22222@10.10.1.252:5060>;tag=5790bba
From: 88888<sip:88888@10.10.1.254:5060>;tag=41275790f11
Call-ID: EXCEL-CSP1.101f.3857.140@10.10.1.254
CSeq: 1 INVITE
Contact: 22222<sip:22222@10.10.1.252:5060>
Require: timer
Supported: timer
Session-Expires: 1800; refresher=uas
Via: SIP/2.0/UDP 10.10.1.254
User-Agent: Excel_CSP/83.1.13
Content-Type: application/sdp
Content-Length: 131
v=0
o=sip 1139999646 1139999646 IN IP4 10.10.1.252
s=SIP_Call
c=IN IP4 10.10.1.172
t=0 0
m=audio 10140 RTP/AVP 0
a=sendrecv
5 -SENT To 10.10.1.252:5060 at 3857
ACK sip:22222@10.10.1.252:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.254
To: 22222<sip:22222@10.10.1.252:5060>;tag=5790bba
From: 88888<sip:88888@10.10.1.254:5060>;tag=41275790f11
Call-ID: EXCEL-CSP1.101f.3857.140@10.10.1.254
CSeq: 1 ACK
Content-Length: 0
*********************************************************
CSP2:
H->X
[00 15 00 ee 00 00 02 00 00 00 00 02 01 c8 00 01 04 02
62 00 02 13 c4]
X->H
[00 07 00 ee 00 00 02 00 10]
X->H
[00 da 00 2d 00 07 02 00 01 0d 03 00 c8 07 00 33 01 03 00 33
00 c6 00 11 27 4e 00 02 00 05 27 7e 00 03 08 00 00 29
19 00 06 32 32 32 32 32 00 29 1b 00 0c 31 30 2e 31 30
2e 31 2e 32 35 32 00 29 1c 00 04 00 00 13 c4 29 23 00
06 38 38 38 38 38 00 29 25 00 0c 31 30 2e 31 30 2e 31
2e 32 35 34 00 29 26 00 04 00 00 13 c4 29 28 00 06 38
38 38 38 38 00 29 2d 00 06 38 38 38 38 38 00 29 2f 00
0c 31 30 2e 31 30 2e 31 2e 32 35 34 00 29 30 00 04 00
00 13 c4 29 33 00 01 01 27 18 00 08 02 00 00 00 05 88
88 80 27 17 00 06 02 00 05 22 22 20 29 ff 00 23 2a 0e
00 04 0a 0a 01 b6 2a 01 00 17 2a 03 00 01 00 2a 07 00
04 00 00 10 7c 2a 02 00 06 2a 08 00 02 00 02 29 16 00
01 01]
H->X
[00 0c 00 2d 00 07 02 00 01 0d 03 00 c8 07]
H->X
[00 0c 00 2d 00 07 02 00 01 0d 03 00 c8 07]
H->X
[00 11 00 bf 00 00 02 00 02 0d 03 00 c8 07 0d 03 00 c8
07]
X->H
[00 07 00 bf 00 00 02 00 10]
H->X
[00 0d 00 ba 00 00 02 00 01 0d 03 00 c8 07 01]
X->H
[00 07 00 ba 00 00 02 00 10]
2
Printing all SIP messages
1 -RECEIVED From 10.10.1.254:5060 at 3002
INVITE sip:22222@10.10.1.252:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.254
To: 22222<sip:22222@10.10.1.252:5060>
From: 88888<sip:88888@10.10.1.254:5060>;tag=41275790f11
Call-ID: EXCEL-CSP1.101f.3857.140@10.10.1.254
Contact: 88888<sip:88888@10.10.1.254:5060>
User-Agent: Excel_CSP/83.1.13
Supported: timer
Session-Expires: 1800
Min-SE: 300
CSeq: 1 INVITE
Content-Type: application/sdp
Content-Length: 100
v=0
o=sip 0 0 IN IP4 10.10.1.254
s=SIP_Call
c=IN IP4 10.10.1.182
t=0 0
m=audio 4220 RTP/AVP 0
2 -SENT To 10.10.1.254:5060 at 3002
SIP/2.0 100 Trying
To: 22222<sip:22222@10.10.1.252:5060>;tag=5790bba
From: 88888<sip:88888@10.10.1.254:5060>;tag=41275790f11
Call-ID: EXCEL-CSP1.101f.3857.140@10.10.1.254
CSeq: 1 INVITE
Contact: 22222<sip:22222@10.10.1.252:5060>
Via: SIP/2.0/UDP 10.10.1.254
User-Agent: Excel_CSP/83.1.13
Content-Length: 0
3 -SENT To 10.10.1.254:5060 at 3002
SIP/2.0 180 Ringing
To: 22222<sip:22222@10.10.1.252:5060>;tag=5790bba
From: 88888<sip:88888@10.10.1.254:5060>;tag=41275790f11
Call-ID: EXCEL-CSP1.101f.3857.140@10.10.1.254
CSeq: 1 INVITE
Contact: 22222<sip:22222@10.10.1.252:5060>
Via: SIP/2.0/UDP 10.10.1.254
User-Agent: Excel_CSP/83.1.13
Content-Length: 0
4 -SENT To 10.10.1.254:5060 at 3002
SIP/2.0 200 OK
To: 22222<sip:22222@10.10.1.252:5060>;tag=5790bba
From: 88888<sip:88888@10.10.1.254:5060>;tag=41275790f11
Call-ID: EXCEL-CSP1.101f.3857.140@10.10.1.254
CSeq: 1 INVITE
Contact: 22222<sip:22222@10.10.1.252:5060>
Require: timer
Supported: timer
Session-Expires: 1800; refresher=uas
Via: SIP/2.0/UDP 10.10.1.254
User-Agent: Excel_CSP/83.1.13
Content-Type: application/sdp
Content-Length: 131
v=0
o=sip 1139999646 1139999646 IN IP4 10.10.1.252
s=SIP_Call
c=IN IP4 10.10.1.172
t=0 0
m=audio 10140 RTP/AVP 0
a=sendrecv
5 -RECEIVED From 10.10.1.254:5060 at 3002
ACK sip:22222@10.10.1.252:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.254
To: 22222<sip:22222@10.10.1.252:5060>;tag=5790bba
From: 88888<sip:88888@10.10.1.254:5060>;tag=41275790f11
Call-ID: EXCEL-CSP1.101f.3857.140@10.10.1.254
CSeq: 1 ACK
Content-Length: 0
Change port

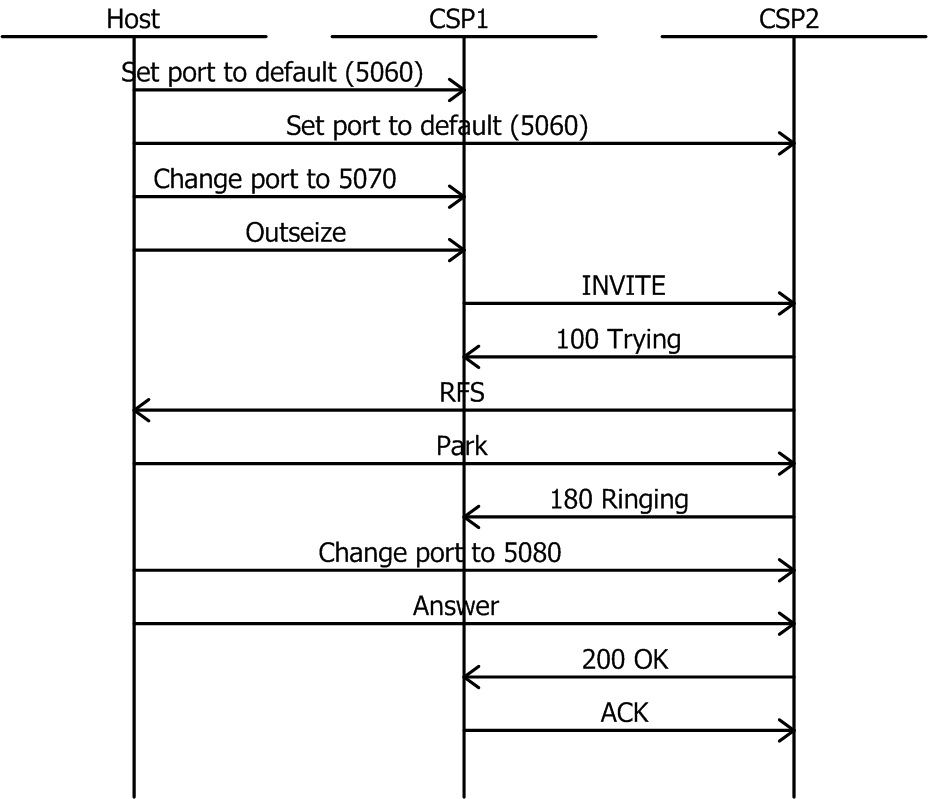

The port is changed to 5070 in the call flow and trace below.
CSP1:
H->X
[00 15 00 ee 00 00 01 00 00 00 00 02 01 c8 00 01 04 02
62 00 02 13 c4]
X->H
[00 07 00 ee 00 00 01 00 10]
H->X
[00 15 00 ee 00 00 01 00 00 00 00 02 01 c8 00 01 04 02
62 00 02 13 ce]
X->H
[00 07 00 ee 00 00 01 00 10]
H->X
[00 83 00 2c 00 01 01 00 01 0d 03 00 64 1f 02 03 00 1e
00 0f 00 02 01 16 00 02 00 00 01 1a 00 03 00 00 00 03
00 33 00 5d 00 09 27 7e 00 03 08 00 00 29 19 00 06 32
32 32 32 32 00 29 1b 00 0c 31 30 2e 31 30 2e 31 2e 32
35 32 00 29 1c 00 04 00 00 13 c4 29 23 00 06 38 38 38
38 38 00 29 25 00 0c 31 30 2e 31 30 2e 31 2e 32 35 34
00 29 26 00 04 00 00 13 c4 27 92 00 04 0a 0a 01 b6 27
93 00 04 00 00 10 7c]
X->H
[00 07 00 2c 00 01 01 00 10]
X->H
[00 11 00 43 00 13 01 00 01 0d 03 00 64 1f 00 a7 00 24 00]
H->X
[00 05 00 43 00 13 01]
H->X
[00 05 00 43 00 13 01]
X->H
[00 44 00 43 00 14 01 00 01 0d 03 00 64 1f 00 a7 00 20 01 03
00 33 00 2e 00 01 29 ff 00 28 2a 0e 00 04 0a 0a 01 ab
2a 01 00 1c 2a 03 00 01 00 2a 07 00 04 00 00 3d 9c 2a
13 00 01 00 2a 02 00 06 2a 08 00 02 00 02]
H->X
[00 05 00 43 00 14 01]
2
Printing all SIP messages
1 -SENT To 10.10.1.252:5060 at 3463
INVITE sip:22222@10.10.1.252:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.254:5070
To: 22222<sip:22222@10.10.1.252:5060>
From: 88888<sip:88888@10.10.1.254:5060>;tag=41271073d87
Call-ID: EXCEL-CSP1.101f.3463.950@10.10.1.254
Contact: 88888<sip:88888@10.10.1.254:5070>
User-Agent: Excel_CSP/83.1.13
Supported: timer
Session-Expires: 1800
Min-SE: 300
CSeq: 1 INVITE
Content-Type: application/sdp
Content-Length: 100
v=0
o=sip 0 0 IN IP4 10.10.1.254
s=SIP_Call
c=IN IP4 10.10.1.182
t=0 0
m=audio 4220 RTP/AVP 0
2 -RECEIVED From 10.10.1.252:5060 at 3463
SIP/2.0 100 Trying
To: 22222<sip:22222@10.10.1.252:5060>;tag=1073a30
From: 88888<sip:88888@10.10.1.254:5060>;tag=41271073d87
Call-ID: EXCEL-CSP1.101f.3463.950@10.10.1.254
CSeq: 1 INVITE
Contact: 22222<sip:22222@10.10.1.252:5060>
Via: SIP/2.0/UDP 10.10.1.254:5070
User-Agent: Excel_CSP/83.1.13
Content-Length: 0
3 -RECEIVED From 10.10.1.252:5060 at 3464
SIP/2.0 180 Ringing
To: 22222<sip:22222@10.10.1.252:5060>;tag=1073a30
From: 88888<sip:88888@10.10.1.254:5060>;tag=41271073d87
Call-ID: EXCEL-CSP1.101f.3463.950@10.10.1.254
CSeq: 1 INVITE
Contact: 22222<sip:22222@10.10.1.252:5060>
Via: SIP/2.0/UDP 10.10.1.254:5070
User-Agent: Excel_CSP/83.1.13
Content-Length: 0
4 -RECEIVED From 10.10.1.252:5080 at 3466
SIP/2.0 200 OK
To: 22222<sip:22222@10.10.1.252:5060>;tag=1073a30
From: 88888<sip:88888@10.10.1.254:5060>;tag=41271073d87
Call-ID: EXCEL-CSP1.101f.3463.950@10.10.1.254
CSeq: 1 INVITE
Contact: 22222<sip:22222@10.10.1.252:5080>
Require: timer
Supported: timer
Session-Expires: 1800; refresher=uas
Via: SIP/2.0/UDP 10.10.1.254:5070
User-Agent: Excel_CSP/83.1.13
Content-Type: application/sdp
Content-Length: 131
v=0
o=sip 1139999254 1139999254 IN IP4 10.10.1.252
s=SIP_Call
c=IN IP4 10.10.1.171
t=0 0
m=audio 15772 RTP/AVP 0
a=sendrecv
5 -SENT To 10.10.1.252:5080 at 3466
ACK sip:22222@10.10.1.252:5080 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.254:5070
To: 22222<sip:22222@10.10.1.252:5060>;tag=1073a30
From: 88888<sip:88888@10.10.1.254:5060>;tag=41271073d87
Call-ID: EXCEL-CSP1.101f.3463.950@10.10.1.254
CSeq: 1 ACK
Content-Length: 0
*********************************************************
CSP2:
H->X
[00 15 00 ee 00 00 02 00 00 00 00 02 01 c8 00 01 04 02
62 00 02 13 c4]
X->H
[00 07 00 ee 00 00 02 00 10]
X->H
[00 da 00 2d 00 06 02 00 01 0d 03 00 c8 06 00 33 01 03 00 33
00 c6 00 11 27 4e 00 02 00 05 27 7e 00 03 08 00 00 29
19 00 06 32 32 32 32 32 00 29 1b 00 0c 31 30 2e 31 30
2e 31 2e 32 35 32 00 29 1c 00 04 00 00 13 c4 29 23 00
06 38 38 38 38 38 00 29 25 00 0c 31 30 2e 31 30 2e 31
2e 32 35 34 00 29 26 00 04 00 00 13 c4 29 28 00 06 38
38 38 38 38 00 29 2d 00 06 38 38 38 38 38 00 29 2f 00
0c 31 30 2e 31 30 2e 31 2e 32 35 34 00 29 30 00 04 00
00 13 ce 29 33 00 01 01 27 18 00 08 02 00 00 00 05 88
88 80 27 17 00 06 02 00 05 22 22 20 29 ff 00 23 2a 0e
00 04 0a 0a 01 b6 2a 01 00 17 2a 03 00 01 00 2a 07 00
04 00 00 10 7c 2a 02 00 06 2a 08 00 02 00 02 29 16 00
01 01]
H->X
[00 0c 00 2d 00 06 02 00 01 0d 03 00 c8 06]
H->X
[00 0c 00 2d 00 06 02 00 01 0d 03 00 c8 06]
H->X
[00 11 00 bf 00 00 02 00 02 0d 03 00 c8 06 0d 03 00 c8
06]
X->H
[00 07 00 bf 00 00 02 00 10]
H->X
[00 15 00 ee 00 00 02 00 00 00 00 02 01 c8 00 01 04 02
62 00 02 13 d8]
X->H
[00 07 00 ee 00 00 02 00 10]
H->X
[00 0d 00 ba 00 00 02 00 01 0d 03 00 c8 06 01]
X->H
[00 07 00 ba 00 00 02 00 10]
2
Printing all SIP messages
1 -RECEIVED From 10.10.1.254:5070 at 2608
INVITE sip:22222@10.10.1.252:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.254:5070
To: 22222<sip:22222@10.10.1.252:5060>
From: 88888<sip:88888@10.10.1.254:5060>;tag=41271073d87
Call-ID: EXCEL-CSP1.101f.3463.950@10.10.1.254
Contact: 88888<sip:88888@10.10.1.254:5070>
User-Agent: Excel_CSP/83.1.13
Supported: timer
Session-Expires: 1800
Min-SE: 300
CSeq: 1 INVITE
Content-Type: application/sdp
Content-Length: 100
v=0
o=sip 0 0 IN IP4 10.10.1.254
s=SIP_Call
c=IN IP4 10.10.1.182
t=0 0
m=audio 4220 RTP/AVP 0
2 -SENT To 10.10.1.254:5070 at 2608
SIP/2.0 100 Trying
To: 22222<sip:22222@10.10.1.252:5060>;tag=1073a30
From: 88888<sip:88888@10.10.1.254:5060>;tag=41271073d87
Call-ID: EXCEL-CSP1.101f.3463.950@10.10.1.254
CSeq: 1 INVITE
Contact: 22222<sip:22222@10.10.1.252:5060>
Via: SIP/2.0/UDP 10.10.1.254:5070
User-Agent: Excel_CSP/83.1.13
Content-Length: 0
3 -SENT To 10.10.1.254:5070 at 2609
SIP/2.0 180 Ringing
To: 22222<sip:22222@10.10.1.252:5060>;tag=1073a30
From: 88888<sip:88888@10.10.1.254:5060>;tag=41271073d87
Call-ID: EXCEL-CSP1.101f.3463.950@10.10.1.254
CSeq: 1 INVITE
Contact: 22222<sip:22222@10.10.1.252:5060>
Via: SIP/2.0/UDP 10.10.1.254:5070
User-Agent: Excel_CSP/83.1.13
Content-Length: 0
4 -SENT To 10.10.1.254:5070 at 2611
SIP/2.0 200 OK
To: 22222<sip:22222@10.10.1.252:5060>;tag=1073a30
From: 88888<sip:88888@10.10.1.254:5060>;tag=41271073d87
Call-ID: EXCEL-CSP1.101f.3463.950@10.10.1.254
CSeq: 1 INVITE
Contact: 22222<sip:22222@10.10.1.252:5080>
Require: timer
Supported: timer
Session-Expires: 1800; refresher=uas
Via: SIP/2.0/UDP 10.10.1.254:5070
User-Agent: Excel_CSP/83.1.13
Content-Type: application/sdp
Content-Length: 131
v=0
o=sip 1139999254 1139999254 IN IP4 10.10.1.252
s=SIP_Call
c=IN IP4 10.10.1.171
t=0 0
m=audio 15772 RTP/AVP 0
a=sendrecv
5 -RECEIVED From 10.10.1.254:5070 at 2611
ACK sip:22222@10.10.1.252:5080 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.254:5070
To: 22222<sip:22222@10.10.1.252:5060>;tag=1073a30
From: 88888<sip:88888@10.10.1.254:5060>;tag=41271073d87
Call-ID: EXCEL-CSP1.101f.3463.950@10.10.1.254
CSeq: 1 ACK
Content-Length: 0
