When isupdemo is run, the following call setup and call release processes take place:

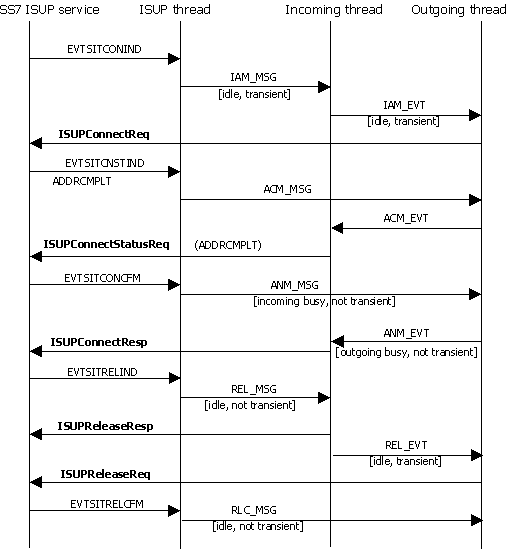

The following illustration shows a normal incoming call setup and release. Brackets ([]) indicate checkpoints, with the checkpointed data contained within the brackets in the form [<circuit state>, <transient state>].

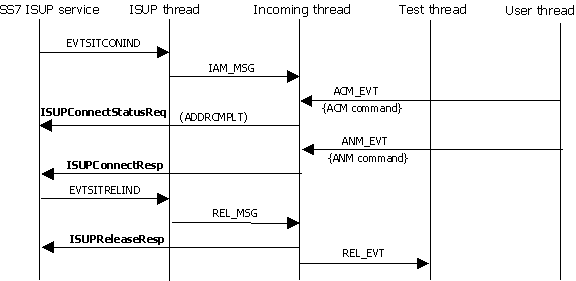

The following illustration shows an incoming test call setup and release. Braces ({}) indicate commands entered from the keyboard.

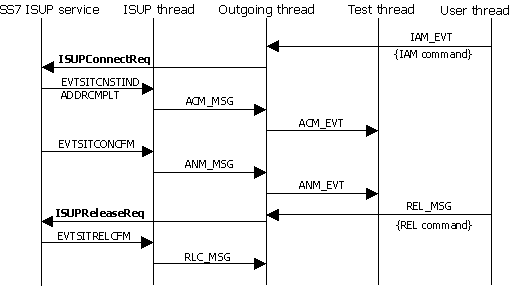

The following illustration shows an outgoing test call setup and release. Braces ({}) indicate commands entered from the keyboard.
