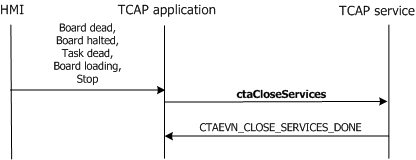

A TCAP application closes the TCAP service when any of the following indications are received:
Board dead
Board loading
Board halted
Task dead
Stop
In these cases, the TCAP application closes the TCAP service and begins the process of reloading the board.
The TCAP application only closes the TCAP service once to a TX board. This can be performed when a failure occurs or when the board is reloaded.
