Example 4: Using simplified application logic to set up calls

This topic shows three examples of negotiating call setup using simplified application logic: the application sets the local capabilities after calling h324Start.

MONA MPC call setup

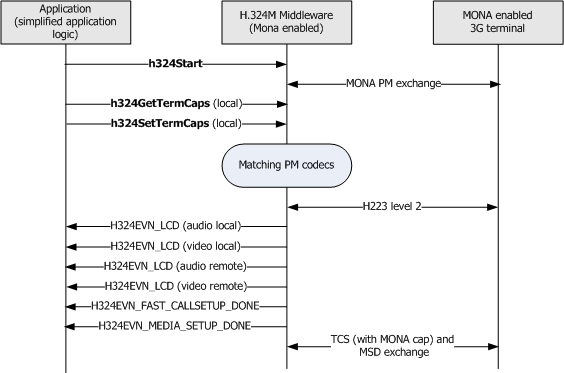

In this example, two endpoints successfully negotiate using the preconfigured MONA media:

MONA ACP fallback call setup

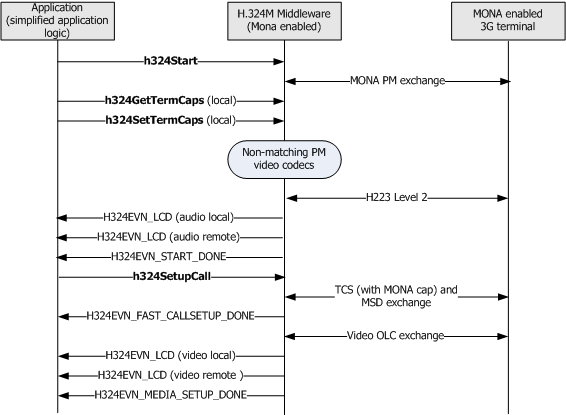

In this example, MPC cannot be used to set up the video channels because of non-matching video codecs:

Falling back to standard H.245 signaling

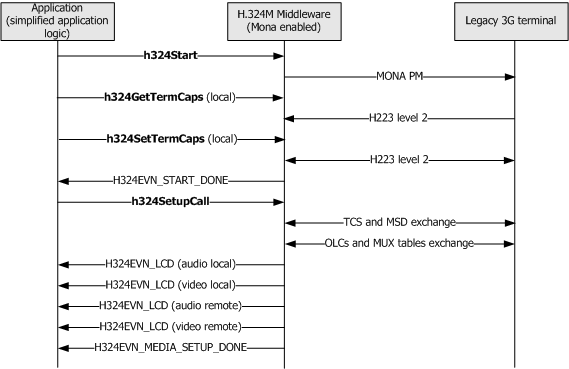

In this example, the remote terminal does not support MONA:
