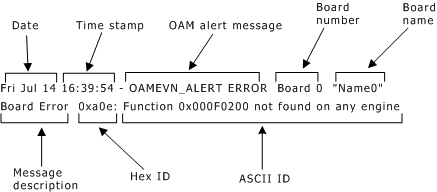

CG board error messages are formatted as follows:
The error messages contain the following fields:
|
Field |
Description |
|
Date |
Date when error occurred. |
|
Time stamp |
Time when error occurred. |
|
OAM alert message |
Error message identifier. |
|
Board number |
Number assigned to board by NMS OAM. |
|
Board name |
Name assigned to board by NMS OAM. |
|
Message description |
Message type description. |
|
Hex ID string |
Hexadecimal identification string. |
|
ASCII ID string |
Text identification string. |
