CG 6060C board variants

The CG 6060C board is available in four-, eight-, and sixteen-trunk variants. The rear I/O transition board used to connect to the PSTN varies depending on the configuration. The available board variants are:

The board you use depends on your particular site's needs.

CG 6060C board variants with RJ-48C interfaces

The following table shows the four-trunk and the eight-trunk variants of the CG 6060C board with RJ-48C interfaces:

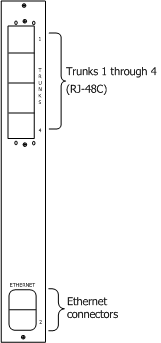

Four-trunk variant (RJ-48C interfaces)

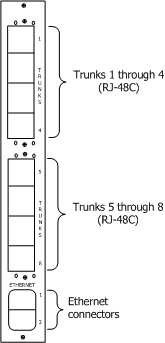

Eight-trunk variant (RJ-48C interfaces)



CG 6060C board variants with MD1 RJ-21 interfaces

The following table shows the eight-trunk and sixteen-trunk variants of the CG 6060C board with MD1 RJ-21 interfaces:

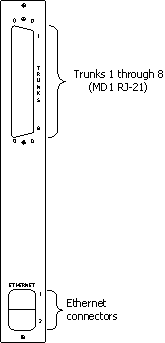

Eight-trunk variant (MD1 RJ-21 interface)

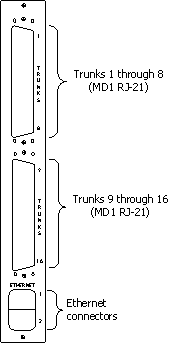

Sixteen-trunk variant (MD1 RJ-21 interfaces)



For information about the products available for connecting and terminating boards, refer to the Dialogic® Hardware Connectivity Manual.

Warning:

Important safety notes for telephony connections:

  • Allow only qualified technical personnel to install this board and its associated telephone wiring.

  • Make sure the PC chassis is grounded through the power cord or by other means before connecting the telephone line.

  • If your system requires an external power supply, make sure it is grounded through the power cord or by other means.

  • Never install telephone wiring during a lightning storm.

  • Never install telephone jacks in wet locations.

  • Telephone companies provide primary lightning protection for their telephone lines. However, if a site connects to private lines that leave the building, make sure that external protection is provided.
