A media bridging configuration allows video server applications to forward video and audio streams:
From external IP sources to 3G-324M terminals.
From 3G-324M terminals to external IP devices.
In both directions at once.
This configuration is typically a temporary modification of one of the previous configurations. For example, after having played an audio/video file, an application can switch to an external incoming RTP stream for a while, and later on, switch back to the host to play another file.

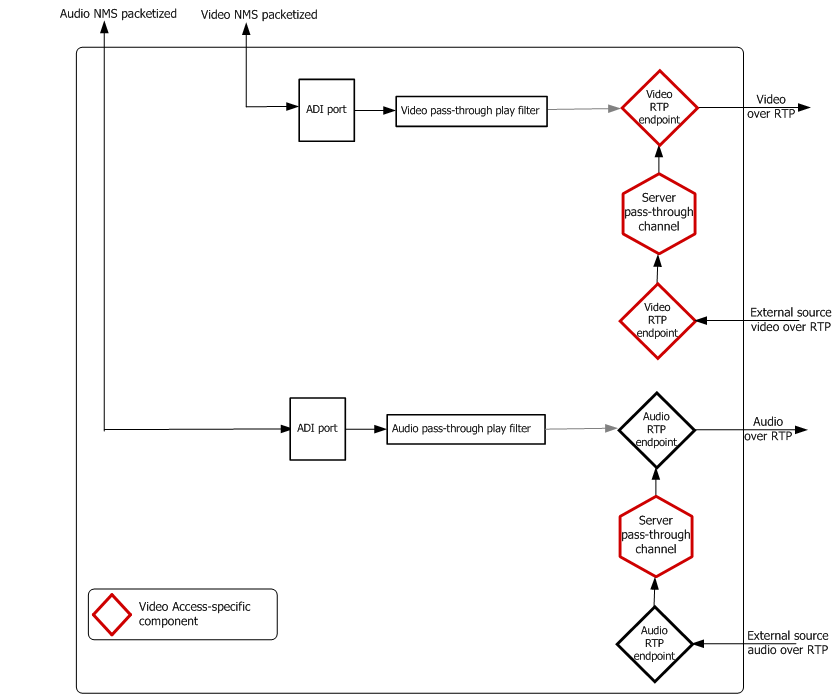

The following illustration shows a media bridging configuration derived from a playback configuration:
To bridge an external RTP source through the Video Messaging Server Interface, the application creates and connects a server pass-through channel, similar to a standard Fusion RTP switching channel. No DSP resources are consumed by the forward operation. For information about a Fusion RTP switching channel, see the Fusion Developer's Manual. For information on video specific endpoints and server pass-through channels, see Creating server pass-through channels.
Audio/video bridging is a temporary re-configuration of one of the previous configurations. In the media bridging configuration, play and record from or to the host is not supported.
The following table presents a typical function sequence to initialize in a bridging configuration. This sequence contains both video-specific calls and non-video-specific calls.
Note: The bridging configuration is typically initialized in one of the other configurations (for example, pass-through with silence detection).
Step |
Call |
Description |
Forwarding the RTP packets from an external source. |
||
1 |
mspCreateEndpoint ( video_ctahd, &extvideo_ephd) |
Creates a video RTP endpoint to receive packets from the external video source. |
2 |
mspCreateEndpoint ( audio_ctahd, &extaudio_ephd) |
Creates an audio RTP endpoint to receive packets from the external audio source. |
3 |
mspCreateChannel ( video_ctahd, &extvideo_chhd) |
Creates a video server pass-through channel (type RTPPassthruSimplex). See Creating server pass-through channels for more information. |
4 |
mspCreateChannel ( audio_ctahd, &extaudio_chhd) |
Creates an audio server pass-through channel (type RTPPassthruSimplex). See Creating server pass-through channels for more information. |
5 |
mspConnect ( video_ephd, extvideo_chhd, extvideo_ephd) |
Connects the regular video RTP endpoint, the server pass-through channel, and the external-source-RTP-endpoint together. |
6 |
mspConnect ( audio_ephd, extaudio_chhd, extaudio_ephd) |
Connects the regular audioRTP endpoint, the server pass-through channel, and the external-source-RTP-endpoint together. |
