Conference

The Conference resource encapsulates a single instance of a conference resource on the media server. This resource contains the media streams that are currently included in the active conference.

XML Definition

<conference identifier="<identifier>" appid="<appid>"
    href="http://server/dialogicwebservice/mediacontrol/conferences/<identifier>">
    <mediastream identfier="<stream identifier>" action=”<action>” mute="<mute>" />
    <mediastream identfier="<stream identifier>" action=”<action>” mute="<mute>" />
    <mediastream identfier="<stream identifier>" action=”<action>” mute="<mute>" />
    ...
</conference>

Conference Properties

Name

Description

Type

Input / Output

Optional / Mandatory

identifier

Unique identifier assigned to the specific instance of the resource. This identifier is used by the web service client when performing actions on the resource.

String

Output

N/A

appid

Unique application id included in the original HTTP POST creation process that is utilized by the web service such that clients only have access to resources that they created.

String

Output

N/A

href

An HTTP reference to the specific resource.

String

Output

N/A

action

Action to perform.

Values: add, remove, update.

Default: add

String


Input / Output

Optional

mute

Do not mix audio from this leg into the conference if "yes". Mix audio into the conference if "no". Mix audio to buddies, if on their list.

Values: yes, no, buddies.

String

Input / Output

Optional


Interaction Diagram

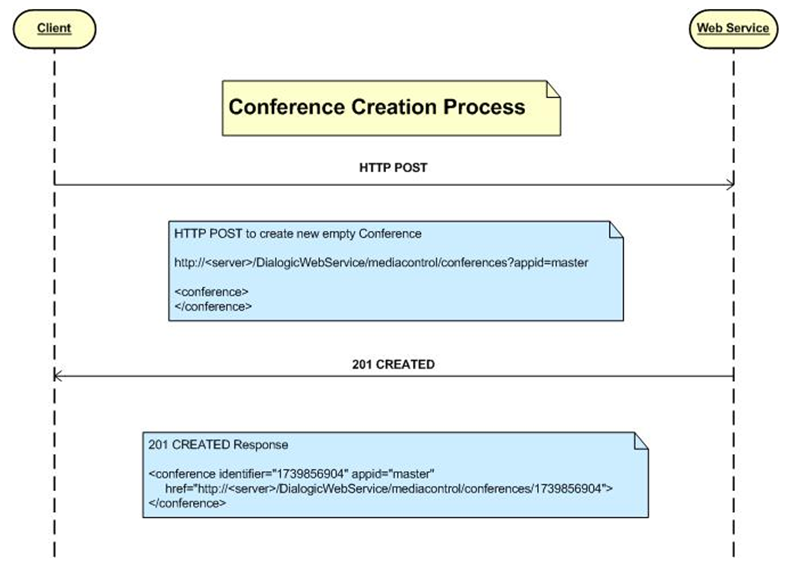

Conference Creation

The following diagram illustrates the Conference creation process.

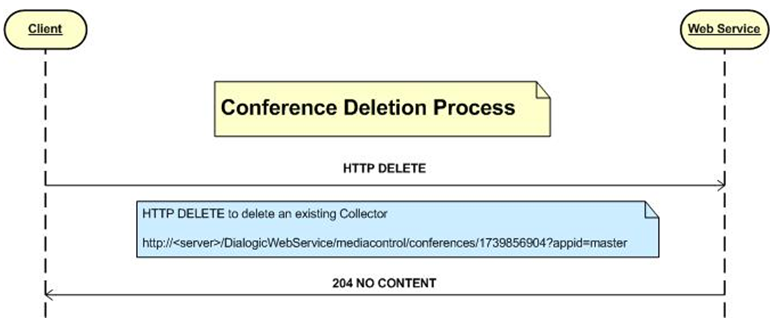

Conference Deletion

The following diagram illustrates the Conference deletion process.

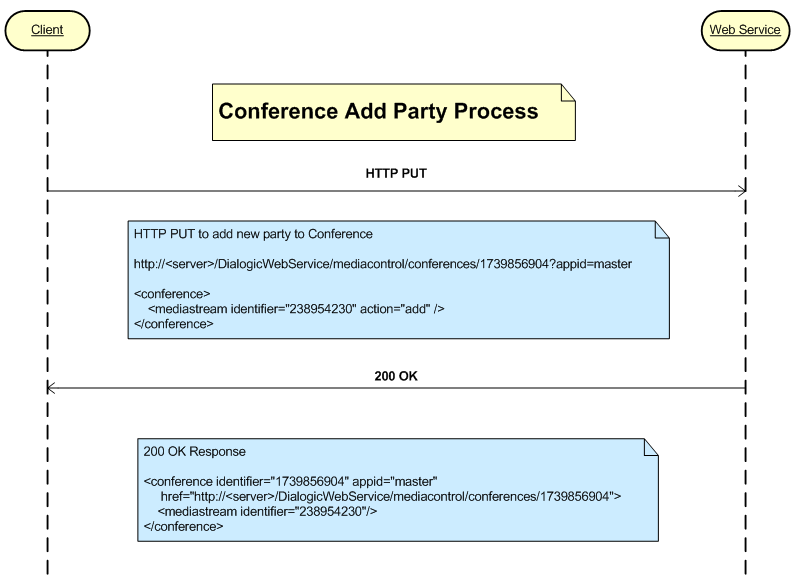

Conference Adding Party

The following diagram illustrates the Conference add party process.

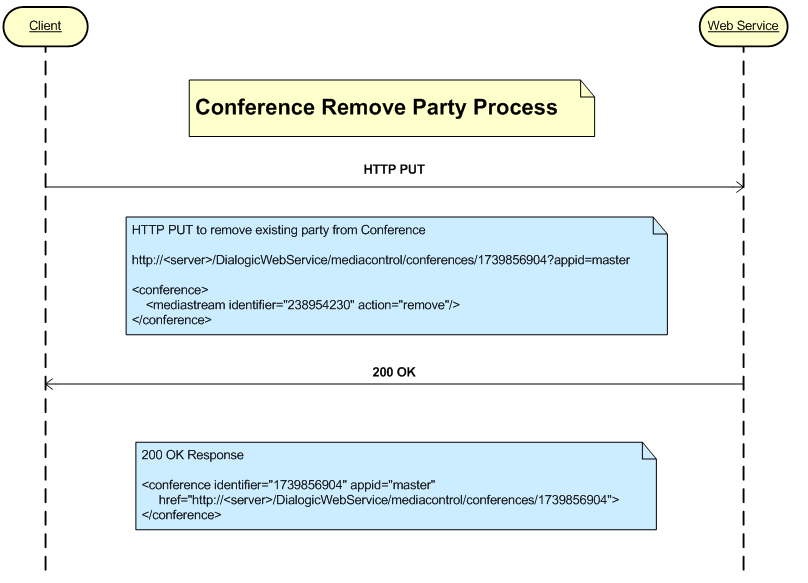

Conference Removing Party




Java Sample Code

    public void CreateConference() {
        logger.info("Conference:: CreateConference - Entered.");
        //Create a HttpURLConnection with the correct server
        //Send request to create an empty conference and retrieve response
        String requestBody = "<conference> </conference>";
        HttpURLConnection connection = utils.SendHTTPRequest("http://" + MainSipServlet.MWSHost + ":81/DialogicWebService/mediacontrol/conferences",
                                                             "POST",
                                                             requestBody);
        if (connection != null) {
            xmlDoc = utils.GetHTTPXMLResponse(connection);
        }
        //Retrieve response codes
        int responseCode = 0;
        try {
            responseCode = connection.getResponseCode();
        } catch (IOException ex) {
            Logger.getLogger(MainSipServlet.class.getName()).log(Level.SEVERE, null, ex);
        }
        String responseMessage = "";
        try {
            responseMessage = connection.getResponseMessage();
        } catch (IOException ex) {
            Logger.getLogger(MainSipServlet.class.getName()).log(Level.SEVERE, null, ex);
        }
        String responseLocation = connection.getHeaderField("location");
        //close the connection
        connection.disconnect();
        //log results
        logger.info("Conference:: CreateConference - Http response code =" + responseCode);
        logger.info("Conference:: CreateConference - Http response message =" + responseMessage);
        logger.info("Conference:: CreateConference - Http response location =" + responseLocation);
        if (responseCode == 201) {
            conferenceRef = responseLocation;
            identifier = ParseIdentifier();
        }
        logger.info("Conference:: CreateConference - Exited.");
    }
