Media Stream

The MediaStream resource owns the creation and management of a media connection between the remote media endpoint and the PowerMedia WMS. This resource defines the following:

Audio and video codecs used
IP Address and ports of both the remote and local endpoints
Various media related properties associated with the media connection

XML Definition

<mediastream
    identifier="<identifier>" appid="<appid>"
    href="http://server/dialogicwebservice/mediacontrol/mediastreams/<identifier>"
    clientipaddress="<clientip>" serveripaddress="<serverip>">
    <audio codec="<codec>" clientport="<port>" serverport="<port>"
        payload=”<payload>” fmtp=”<fmtp>”
        enable2833=”<boolean>” frames per packet="<frames per packet>"
        jitter depth="<jitter depth>" payload2833="<payload2833>" type="<type>"/>
    <video codec="<codec>" clientport="<port>" serverport="<port>"
        payload=”<payload>” fmtp=”<fmtp>” frames per packet="<frames per packet>"
        jitter depth="<jitter depth>" type="<type>"/>
</mediastream>

MediaStream Properties

Name	Description	Type	Input / Output	Optional / Mandatory
identifier	Unique identifier assigned to the specific instance of the resource. This identifier is used by the web service client when performing actions on the resource.	String	Output	N/A
appid	Unique application id included in the original HTTP POST creation process that is utilized by the web service such that clients only have access to resources that they created.	String	Output	N/A
href	An HTTP reference to the specific resource.	String	Output	N/A
clientipaddress	IP Address of the remote media endpoint.	IP Address	Input / Output	Mandatory
serveripaddress	IP Address of the PowerMedia WMS.	IP Address	Output	N/A
audio codec	Audio codec being utilized for this particular MediaStream. Values: ulaw, alaw, g711, g723, g726, g729, amr	String	Input / Output	Mandatory
audio clientport	The port on which the remote endpoint will be receiving audio.	String	Input / Output	Mandatory
audio serverport	The port on which the PowerMedia WMS will be receiving audio.	String	Output	N/A
audio payload	RTP payload type associated with audio codec. See RFC 3550.	String	Input / Output	Optional
audio fmtp	Miscellaneous “fmtp” parameters for audio codec.	String	Input / Output	Optional
audio enable2833	Enable RFC 2833 digit detection. Values: True or False Default: False	String	Input / Output	Optional
audio payload2833	RTP payload ID of generated 2833 events. Values: 96 to 127 Default: 101	String	Input / Output	Optional
audio type	Determines the direction of the RTP stream. Values: sendonly, sendrecv, recvonly Default: sendrecv	String	Input / Output	Optional
audio jitter depth	Jitter buffer size (frames). Default: 2	String	Input / Output	Optional
audio frame per packet	Frames sent per packet. Default: 2	String	Input / Output	Optional
video codec	Video codec being utilized for this particular MediaStream. Values: h263, h264, h263-1998, h263-2000	String	Input / Output	Mandatory
video clientport	The port on which the remote endpoint will be receiving video.	String	Input / Output	Mandatory
video serverport	The port on which the PowerMedia WMS will be receiving video.	String	Output	N/A
video payload	Payload number associated with video codec.	String	Input / Output	Optional
video fmtp	Miscellaneous “fmtp” parameters for video codec.	String	Input / Output	Optional
video type	Determines the direction of the RTP stream. Values: sendonly, sendrecv, recvonly Default: sendrecv	String	Input / Output	Optional
video jitter depth	Jitter buffer size (frames). Default: 2	String	Input / Output	Optional
video frame per packet	Frames sent per packet. Default: 2	String	Input / Output	Optional

Interaction Diagram

MediaStream Creation

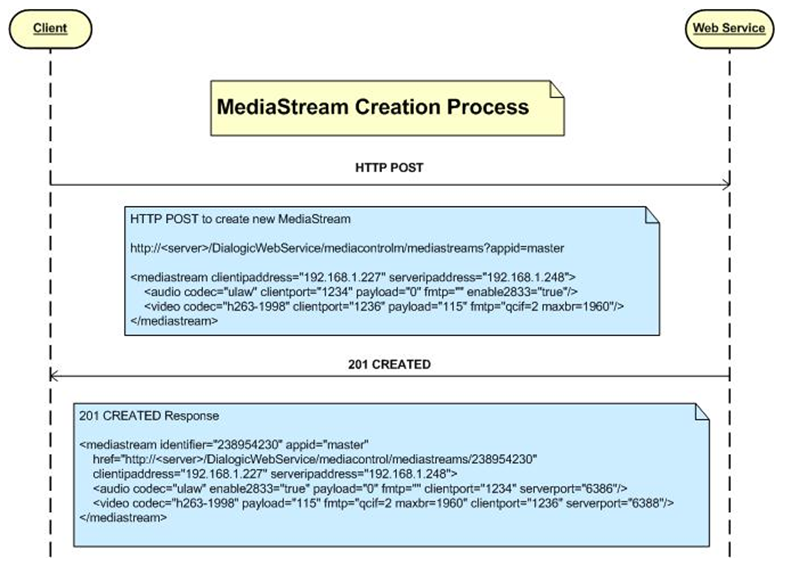

The following diagram illustrates the MediaStream creation process.

MediaStream Deletion

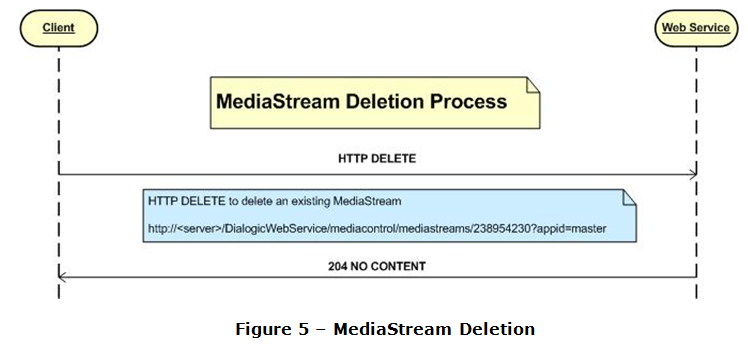

The following diagram illustrates the MediaStream deletion process.

Java Sample Code

public boolean CreateMediaStream(String callId, String clientIPAddress,
       int clientAudioPort, int clientVideoPort,
        String audioCodec, String audioPayload,String audioFmtp, String enable2833,
        String videoCodec, String videoPayload, String videoFmtp)
        {
           logger.info("MediaSession::CreateMediaStream - Entered.");
           boolean result = false;
           String WMSAudioCodec = "";
           if (audioCodec.contentEquals("pcmu")) {
           WMSAudioCodec = "ulaw";
        }
        String requestBody = "<mediastream " +
           "clientipaddress=\"" + clientIPAddress + "\" " +
           "serveripaddress=\"" + MainSipServlet.WMSHost + "\">\r\n" +
           "\t<audio codec=\"" + WMSAudioCodec + "\" clientport=\"" +
            clientAudioPort + "\" " +
        "payload=\"" + audioPayload +  "\" " +
        "fmtp=\"" + audioFmtp +  "\" " +
        "enable2833=\"" + enable2833 + "\"/>\r\n";
        if (videoCodec.length() > 0) {
            requestBody = requestBody +
                 "\t<video codec=\"" + videoCodec + "\" clientport=\"" +
                 clientVideoPort + "\" " +
                 "payload=\"" + videoPayload +  "\" " +
                 "fmtp=\"" + videoFmtp +  "\" " +
                 "/>\r\n";
        }
        requestBody = requestBody + "</mediastream>";
        //Create a HttpURLConnection with the correct server
        //Send request and retrieve response
        HttpURLConnection connection = utils.SendHTTPRequest("http://" +
           MainSipServlet.WMSHost +
           ":81/DialogicWebService/mediacontrol/mediastreams",
           "POST",
           requestBody);
if (connection != null) {
            xmlDoc = utils.GetHTTPXMLResponse(connection);
        }
        //Retrieve response codes
        int responseCode = 0;
        try {
            responseCode = connection.getResponseCode();
        } catch (IOException ex) {
            Logger.getLogger(MediaSession.class.getName()).log(Level.SEVERE,null,ex);
            logger.info("MediaSession::CreateMediaStream - Exited.");
            return result;
        }
        String responseMessage = "";
        try {
            responseMessage = connection.getResponseMessage();
        } catch (IOException ex) {
            Logger.getLogger(MediaSession.class.getName()).log(Level.SEVERE,null,ex);
            logger.info("MediaSession::CreateMediaStream - Exited.");
            return result;
        }
        String responseLocation = connection.getHeaderField("location");
        //close the connection
        connection.disconnect();
        //log results
        logger.info("MediaSession::CreateMediaStream - Http response code ="
            + responseCode);
        logger.info("MediaSession::CreateMediaStream - Http response message ="
            + responseMessage);
        logger.info("MediaSession::CreateMediaStream - Http response location ="
            + responseLocation);
        if (responseCode == 201) {
            this.callId = callId;
            mediaStreamRef = responseLocation;
            identifier = ParseIdentifier();
            collector.Create(identifier, Collector.IdentifierType.MEDIASTREAM);
            result = true;
        }
        logger.info("MediaSession::CreateMediaStream - Exited.");
        return result;
    }
