Recorder

The Recorder resource encapsulates a single instance of a media recording resource. This resource defines the source for the media recording operation (MediaStream or Conference) the destination for the recording, and various media-related properties associated with the Recorder resource.

XML Definition

<recorder identifier="<identifier>" appid="<appid>"
    href=http://server/dialogicwebservice/mediacontrol/recorders/<identifier>
    streamidentifier="<stream identifier>" conferenceidentifier="<conference identifier>"
    destination="<destination>" append="< boolean >" duration=”<duration>”
    dtmfterminate=”<digits>” initsilence=”<milliseconds>” endsilence=”<milliseconds>”>
</recorder>

Recorder Properties

Name	Description	Type	Input / Output	Optional / Mandatory
identifier	Unique identifier assigned to the specific instance of the resource. This identifier is used by the web service client when performing actions on the resource.	String	Output	N/A
appid	Unique application id included in the original HTTP POST creation process that is utilized by the web service such that clients only have access to resources that they created	String	Output	N/A
href	An HTTP reference to the specific resource	String	Output	N/A
streamidentifier	Unique identifier of the MediaStream that is being recorded by the resource	String	Input / Output	Mandatory if conferenceidentifier is not being set
conferenceidentifier	Unique identifier of the Conference that is being recorded by the resource	String	Input / Output	Mandatory if streamidentifier is not being set.
destination	The location where the Recorder resource will store the recording	String URL	Input / Output	Mandatory
append	Append recording to a previously created recording	Boolean	Input / Output	Optional
duration	Length of time to record (in milliseconds)	Integer (milliseconds)	Input / Output	Optional
dtmfterminate	A list of digits that can be used to terminate the recording process	String	Input / Output	Optional
initsilence	Initial silence (in milliseconds) that will terminate the recording operation	Integer (milliseconds)	Input / Output	Optional
endsilence	Ending silence (in milliseconds) that will terminate the recording operation	Integer (milliseconds)	Input / Output	Optional

Interaction Diagram

Recorder Creation

The following diagram illustrates the Recorder creation process.

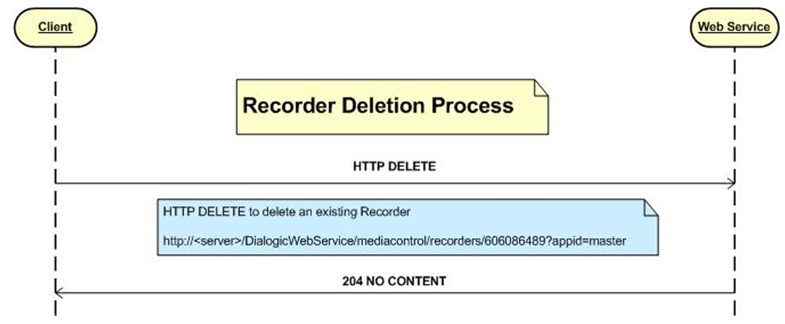

Recorder Deletion

The following diagram illustrates the Recorder deletion process.

Java Sample Code

    public void CreateRecorder(String srcIdentifier, IdentifierType type, String dest) {
        logger.info("Recorder:: CreateRecorder - Entered.");
        //Create a HttpURLConnection with the correct server
        //Send request to create recorder and retrieve response
        String response = "";
        String identifierText = "streamidentifier";
        if (type == IdentifierType.CONFERENCE) {
            identifierText = "conferenceidentifier";
        }
        String requestBody = "<recorder " +
                                   identifierText +
                                   "=\"" +
                                   srcIdentifier +
                                   "\" " +
                                   “destination=\”” +
                                   dest +
                                   “\”” +
                                   ">" +
                                   "</recorder>";
        HttpURLConnection connection = utils.SendHTTPRequest("http://" + MainSipServlet.WMSHost + ":81/DialogicWebService/mediacontrol/recorders",
                                                             "POST",
                                                             requestBody);
        if (connection != null) {
            response = utils.GetHTTPStringResponse(connection);
        }
        //Retrive response codes
        int responseCode = 0;
        try {
            responseCode = connection.getResponseCode();
        } catch (IOException ex) {
            Logger.getLogger(MainSipServlet.class.getName()).log(Level.SEVERE, null, ex);
        }
        String responseMessage = "";
        try {
            responseMessage = connection.getResponseMessage();
        } catch (IOException ex) {
            Logger.getLogger(MainSipServlet.class.getName()).log(Level.SEVERE, null, ex);
        }
        String responseLocation = connection.getHeaderField("location");
        //close the connection
        connection.disconnect();
        //log results
        logger.info("Recorder:: CreateRecorder - Http response code =" + responseCode);
        logger.info("Recorder:: CreateRecorder - Http response message =" + responseMessage);
        logger.info("Recorder:: CreateRecorder - Http response location =" + responseLocation);
        if (responseCode == 201) {
            recorderRef = responseLocation;
            int index = recorderRef.lastIndexOf("/recorders", recorderRef.length());
            resourceId = recorderRef.substring(index+11);
            logger.info("Recorder:: CreateRecorder - Resource Id = " + resourceId);
        }
        logger.info("Recorder:: CreateRecorder - Exited.");
    }
