Debug Cable Assembly - Part Nos. 64-0046-00/164-0046-00
The debug cable is connected between the Monitor port on the Matrix Controller Series 3 card and the host to set the IP address. Also set DIP S1 Positions 1 and 3 to OFF on these cards when using the debug cable.
The debug cable assembly is designed to the following specifications.
|
Parameter |
Specification |
|---|---|
|
Length |
3 ft. |
|
Connector Types |
4-Pin Mini DIN, Keyed; DB-9 Connectors |
The products related to the debug cable assembly are listed below.
|
Product |
Model No. |
RoHS Model No. |
|---|---|---|
|
Matrix Controller Series 3 Card |
EXS-CPU-1300 |
EXS-CPU-1300R |

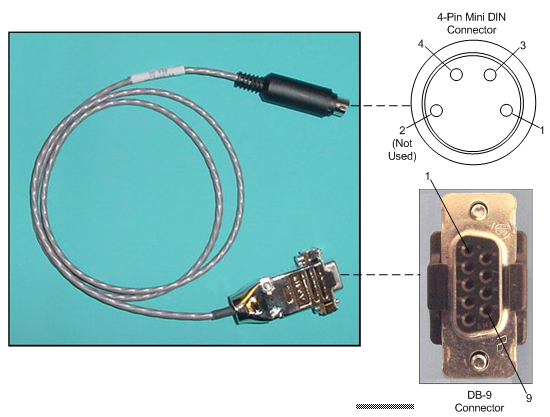

The debug cable assembly is made up of the following components.
The debug cable assembly connector pinouts are listed below.
|
P1 Pinouts |
Signal Name |
DB-9 |
|---|---|---|
|
1 |
Receive (RCV) Data |
3 |
|
3 |
Ground |
5 |
|
4 |
Transmit (TX) Data |
2 |
