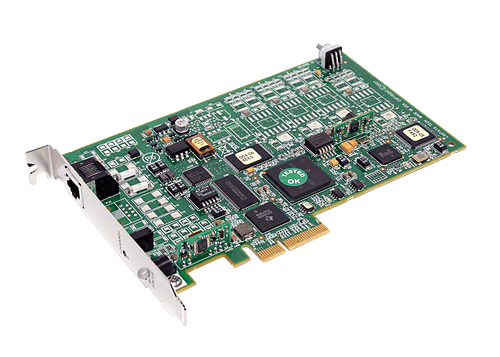

Dialogic Brooktrout TruFax Fax Boards

Brooktrout TruFax Fax Boards

Overview

The Dialogic® Brooktrout® TruFax® Fax Boards offer small businesses and departmental workgroups dependable network fax capabilities. These intelligent fax boards support a variety of applications, such as fax server and workflow fax, and offer enterprise-level quality and performance to small businesses.

Available in several configurations, Brooktrout TruFax Fax Boards provide up to four (4) channels per board for dedicated send-and-receive channel configurations. If TruFax Fax Boards are configured to send and receive faxes through separate channels, the fax solution can receive faxes in one channel and send faxes from the outbound job queue in another channel.



Models Channels Interface Adaptive
Call Progress
ECM MMR

TruFax 200 Analog

2

Analog

x




TruFax 200 BRI

 2   BRI ISDN  x

TruFax 250 BRI

2

BRI ISDN

x

x

x

TruFax 400 BRI

4

BRI ISDN

x



TruFax 450 BRI

4

BRI ISDN

x

x

x

The table above lists the Brooktrout TruFax Fax Board models and some of their features. The ISDN telephony interface can be used in Europe and Japan.

Key Features

Leverages advanced fax algorithms and provides dedicated fax-processing power

Offers performance and reliability benefits in comparison to Class 1 and Class 2 fax modems and multipurpose telephony adapters

Fax-only modulation to drop all non-T.30 packets

Eliminates possible security issues related to non-T.30 packets

Supports analog and BRI configurations

Allows use in networks around the world

Field-proven T.30 implementation

Helps to deliver faxes consistently and with high reliability

Up to four (4) Brooktrout Trufax Fax Boards can operate concurrently in a single server

Enables easy scalability to address an organization’s growing communications needs

Error Correction Mode (ECM) in TruFax 250 BRI and TruFax 450 BRI models

Allows high first-attempt transmission rates in specific models

Modified Modified Read (MMR) compression algorithm in TruFax 250 BRI and TruFax 450 BRI models

Can reduce transmission time by up to 67% compared to other TruFax models

Documents

Find related manuals, data sheets, whitepapers, case studies and more. Click the icon to expand.

Ordering Information

Use the Purchase page linked below to find partners to purchase Dialogic products. The order codes below are for your reference when making a purchase.

Where to Buy
ProductOrder CodeDescription

Trufax 200E LP

901-017-03

2 Channel Loop Start, PCI Express TruFax Board; low profile

TruFax 200E BRI (2B+D)

901-012-07

Half-size, two-channel PCI Express fax board with BRI interface

TruFax 250E BRI (2B+D)

901-012-08

Half-size, two-channel PCI Express fax board with BRI interface and MMR

TruFax 400E BRI (4B+2D)

901-012-09

Half-size, four-channel PCI Express fax board with BRI interface

TruFax 450E BRI (4B+2D)

901-012-10

Half-size, four-channel PCI Express fax board with BRI interface, MMR, and ECM
