Trunk interfaces

A CG 6565 board has either four-trunks or eight-trunks.

Warning:

Important safety notes for telephony connections

  • Allow only qualified technical personnel to install this board and its associated telephone wiring.

  • Make sure the PC chassis is grounded through the power cord or by other means before connecting the telephone line.

  • If your system requires an external power supply, make sure it is grounded through the power cord or by other means.

  • Never install telephone wiring during a lightning storm.

  • Never install telephone jacks in wet locations.

  • Telephone companies provide primary lightning protection for their telephone lines. However, if a site connects to private lines that leave the building, make sure that external protection is provided.

For information about the products available for connecting and terminating boards, refer to the Dialogic® Hardware Connectivity Manual.

Four-trunk board

The board with four trunks has:

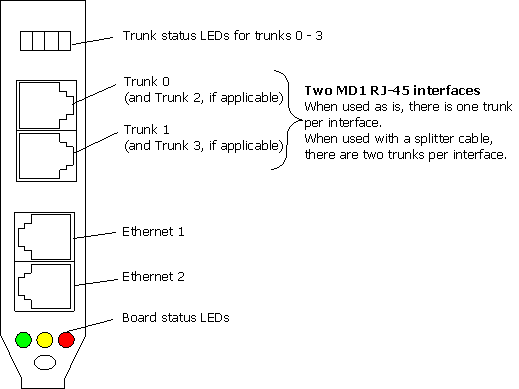

The following illustration shows a CG 6565 board with four trunks:


Eight-trunk board

The board with eight trunks has:

The following illustration shows a CG 6565 board with eight trunks:
