MSPP function sequence and state machine

This topic provides the following illustrations:

• MSPP function setup and tear down sequence

• MSPP state machine

When setting up and tearing down MSPP connections, keep the following in mind:

• The application can create endpoints and channels in any sequence.

• Applications can interrupt a connection either by disabling the channel (with mspDisableChannel) or by disabling one of its component connection endpoints (with mspDisableEndpoint).

• Channel filters cannot receive commands until the channel is connected.

MSPP function setup and tear down sequence

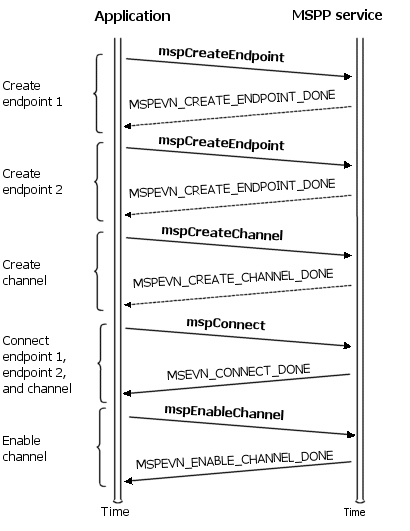

The following illustration shows a typical MSPP function sequence for setting up MSPP connections.

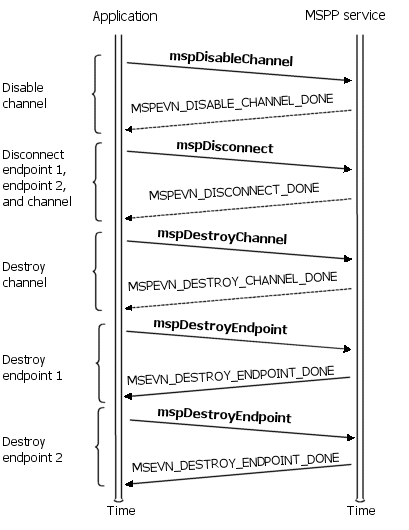

The following illustration shows a typical MSPP function sequence for tearing down MSPP connections.

MSPP state machine

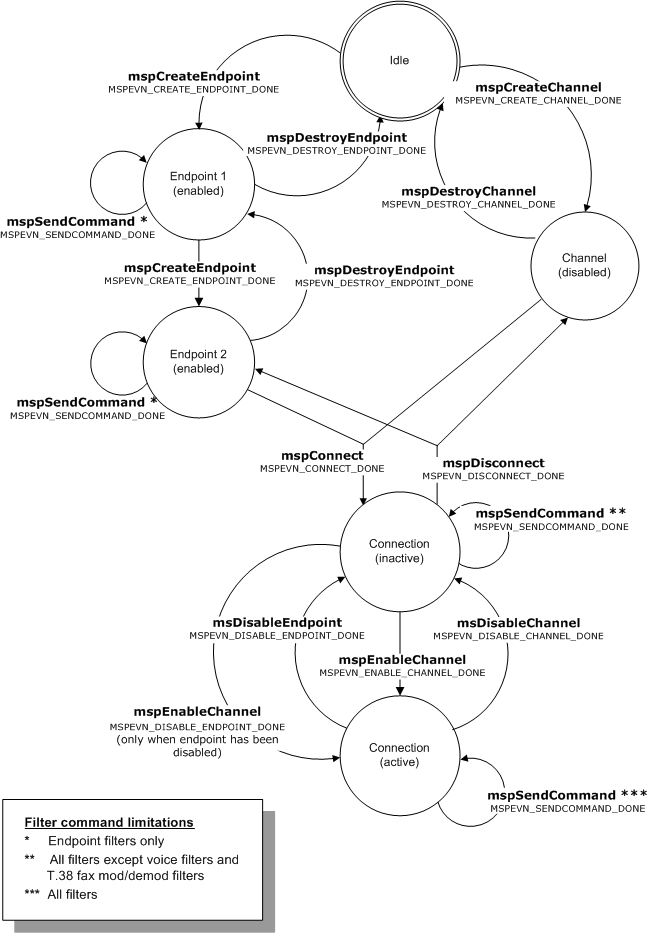

The following illustration shows is a state machine for creating and destroying an MSPP connection.
