RTP IPv6 simplex receive endpoint filter

Provides an entry point for a IPv6 simplex data stream (data that includes RTP headers within UDP packets) received from the IPv6 interface. For more information about RTP IPv6 endpoint parameters, refer to RTP IPv6 endpoint address structure and RTP IPv6 endpoint parameter structure.

Filter ID

MSP_ENDPOINT_RTPIN_V6

Initialization structure

RTPRTCP_V6_ENDPOINT_PARMS

Restrictions

Used in the voice processing connections.

Channel connections

Can connect to simplex voice decode channels.

Commands

RTP IPv6 simplex receive endpoint filters respond to the following commands:

Command ID	Description
MSP_CMD_RTPIN_V6_CONFIG	Sends an msp_ENDPOINT_RTPIN_V6_CONFIG structure that specifies configuration parameters for the endpoint. RTP IPv6 receive endpoints must be in a disabled state to receive MSP_CMD_RTPIN_V6_CONFIG commands.
MSP_CMD_RTPIN_RTCP_EVENTS	Enables or disables sending of RTCP reports to the application through unsolicited events.
MSP_CMD_RTPIN_MAP	Assigns a payload ID to a vocoder.
MSP_CMD_RTPIN_DTMF_EVENTS	Specifies how the endpoint responds to inband DTMF carriage packets. A control value specifies how the endpoint responds to inband DTMF packets. Defined control values include: SEND_NO_EVENTS No MSPEVN_RFC2833_REPORT is sent upon the arrival of an RFC 2833 compliant packet. SEND_FIRST_EVENT MSPEVN_RFC2833_REPORT is sent upon the arrival of the first RFC 2833 compliant packet for a given DTMF digit. SEND_LAST_EVENT MSPEVN_RFC2833_REPORT is sent upon the arrival of the last RFC 2833 compliant packet for a given DTMF digit. SEND_ALL_EVENTS MSPEVN_RFC2833_REPORT is sent upon the arrival of all RFC 2833 compliant packets (this is limited by the decimation value). A decimation value specifies how many RFC 2833 compliant packets the filter should receive for a particular tone before sending another event. By default SEND_FIRST_EVENT and SEND_LAST_EVENT are enabled.

RTP IPv6 receive endpoints can be receive commands any time after the endpoint is created except for the MSP_CMD_RTPIN_V6_CONFIG command. The RTP receive endpoint must be disabled to receive MSP_CMD_RTPIN_V6_CONFIG commands.

When sending MSP_CMD_RTPIN_V6_CONFIG commands, applications provide a pointer to an msp_ENDPOINT_RTFDX_V6_CONFIG structure. This structure contains all of the parameters used to configure the RTP endpoint when the application created it (parameters that do not apply to the specific endpoint type, for example assembler parameters for a simplex receive endpoints, are ignored by the MSPP API).

When using the MSP_CMD_RTPIN_V6_CONFIG command, applications can specify a value of 0xFFFF for 16-bit parameters or 0xFFFFFFFF for 32-bit parameters (or -1 in decimal format) to retain the existing settings for any endpoint parameters. Otherwise the MSPP API expects a new value for every parameter in the msp_ENDPOINT_RTPFDX_V6_CONFIG structure.

For a list of command IDs and their associated structures, refer to the mspcmd.h or mspinit.h header files.

Queries

RTP IPv6 simplex receive endpoint filters respond to the following query:

Query ID	Description
MSP_QRY_RTPIN_V6 STATUS	Returns information about the RTP endpoint filter state in an msp_FILTER_RTPIN_V6_STATUS structure.

MSP_QRY_RTPIN_V6_STATUS queries return the following structure:

typedef struct tag_msp_ENDPOINT_RTPIN_V6_STATUS {

   // RTP Data
   DWORD        FilterId;
   DWORD        ipFilterState;
   IPV6ADDR     localIPv6Addr;
   DWORD        localPort;
   IPV6ADDR     remoteIPv6Addr;
   DWORD        remotePort;
   DWORD        rtcpEvents;
DWORD        linkEvents;

   // RTP Stats
   DWORD        rxDrop;
   DWORD        rxPkts;
   DWORD        rxBytes;

   // RTP Disassembler Data
   DWORD        last_pid_rcvd;
   DWORD        mismatches;
   DWORD        last_map_vocoder;
   DWORD        last_map_pid;
   DWORD        disassemble_dtmfFrames;
   DWORD        dtmf_event_control;

} msp_ENDPOINT_RTPIN_V6_STATUS;

The returned query structure provides the following information:

Field	Description
Filterid	Reserved.
ipFilterState	Indicates the current state of the filter and the socket state with the CG board IPv6 stack: Created (0x00) The filter is created. Configured (0x01) The filter is configured with its IP and RTP parameters. Starting (0x02) The filter is enabled and is in the process of opening a socket with the CG board IPv6 stack. Active (0x03) The filter has an open socket and is processing RTP data. Stopping (0x04) The filter is disabled, and is in the process of closing its socket with the CG board IPv6 stack. Stop/Destroy (0x05) The filter received a destroy indication, and it is currently in the process of closing its socket with the CG board IPv6 stack prior to destroying itself. Destroying (0x06) The filter is cleaning up all on board resources prior to destroying itself.
localIPv6Addr	IPv6 address (in binary form) of the Ethernet interface on which the RTP session is running.
localPort	Local UDP port number for this RTP session.
remoteIPv6Addr	Remote IPv6 address (in binary form) of the RTP session's destination.
remotePort	Remote UDP port number of the RTP session's destination.
rtcpEvents	Indicates whether or not the endpoint is configured to generate RTCP report events.
linkEvents	Indicates whether or not the endpoint is configured to generate route availability events.
rxDrop	Number of RTP/IP packets dropped by the filter when not in an active state.
rxPkts	Number of valid RTP packets received by this filter.
rxBytes	Number of bytes received by this filter. Includes header bytes as well as data bytes.
last_pid_rcvd	The last RTP payload type (identifier) received.
mismatches	The number of received RTP payload types that were not matched to any supported vocoder.
last_map_vocoder	The Dialogic vocoder used in the last map command. Refer to Vocoder filter attributes for a description of the possible values.
last_map_pid	The payload type (identifier) used in the last map command.
disassemble_dtmfFrames	Number of inbound inband DTMF frames received.
dtmf_event_control	Indicates whether or not the endpoint is configured to generate MSPEVN_RTCP_REPORT events when it receives inband DTMF packets.

Unsolicited events

The RTP IPv6 simplex receive endpoints generate the following unsolicited events when the DtmfMode parameter is set:

Event	Description
MSPEVN_RTCP_REPORT	When the endpoint is configured to return RTCP information, these events return RFC 1889 compliant RTCP report information.
MSPEVN_RFC2833_REPORT	When the endpoint is configured (during initialization or with the MSP_CMD_RTPIN_DTMF_EVENTS command) to detect inband DTMF packets, these events return information about the tone information received in a DTMF packet.

RTP simplex receive endpoint filters can generate unsolicited MSPEVN_RTCP_REPORT events when they are configured (during creation) to return RTCP information. For more information about these events, refer to MSPP unsolicited events.

Details

For more information about receiving information from a packet network through RTP simplex receive endpoints, refer to the RTP IPv6 full duplex endpoint filter.

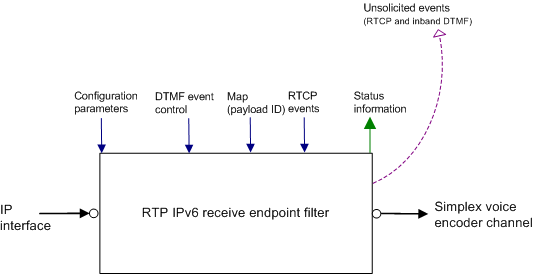

The following illustration shows an RTP IPv6 simplex receive endpoint filter:
